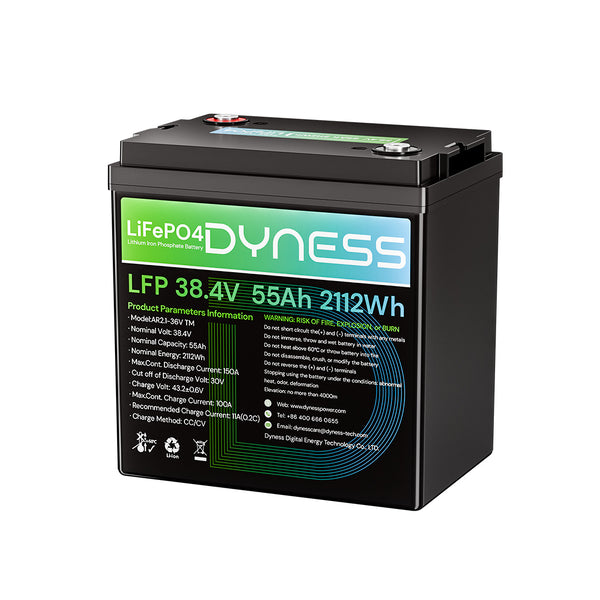

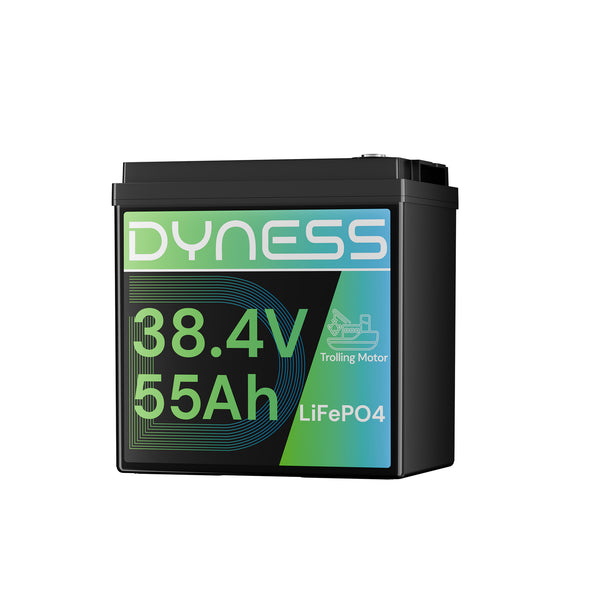

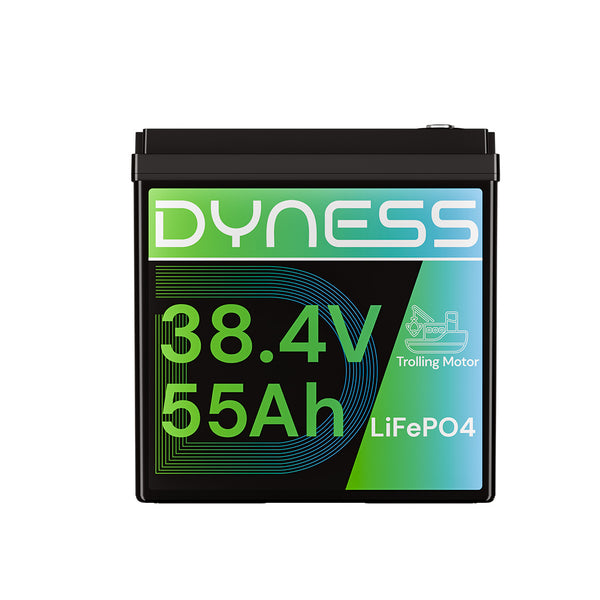

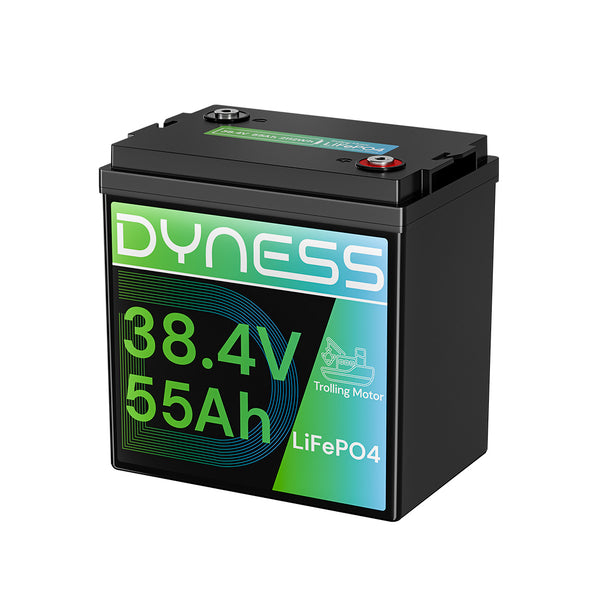

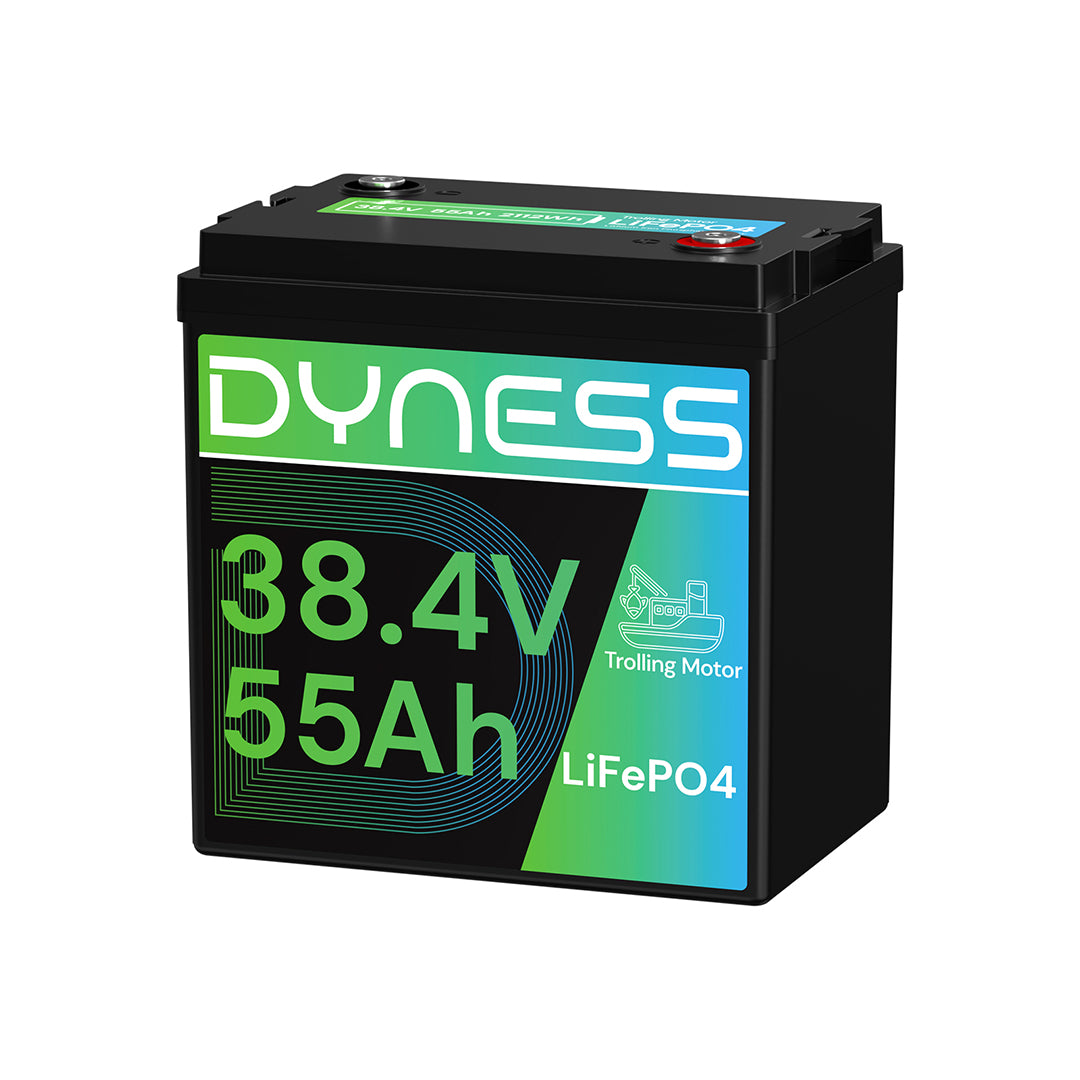

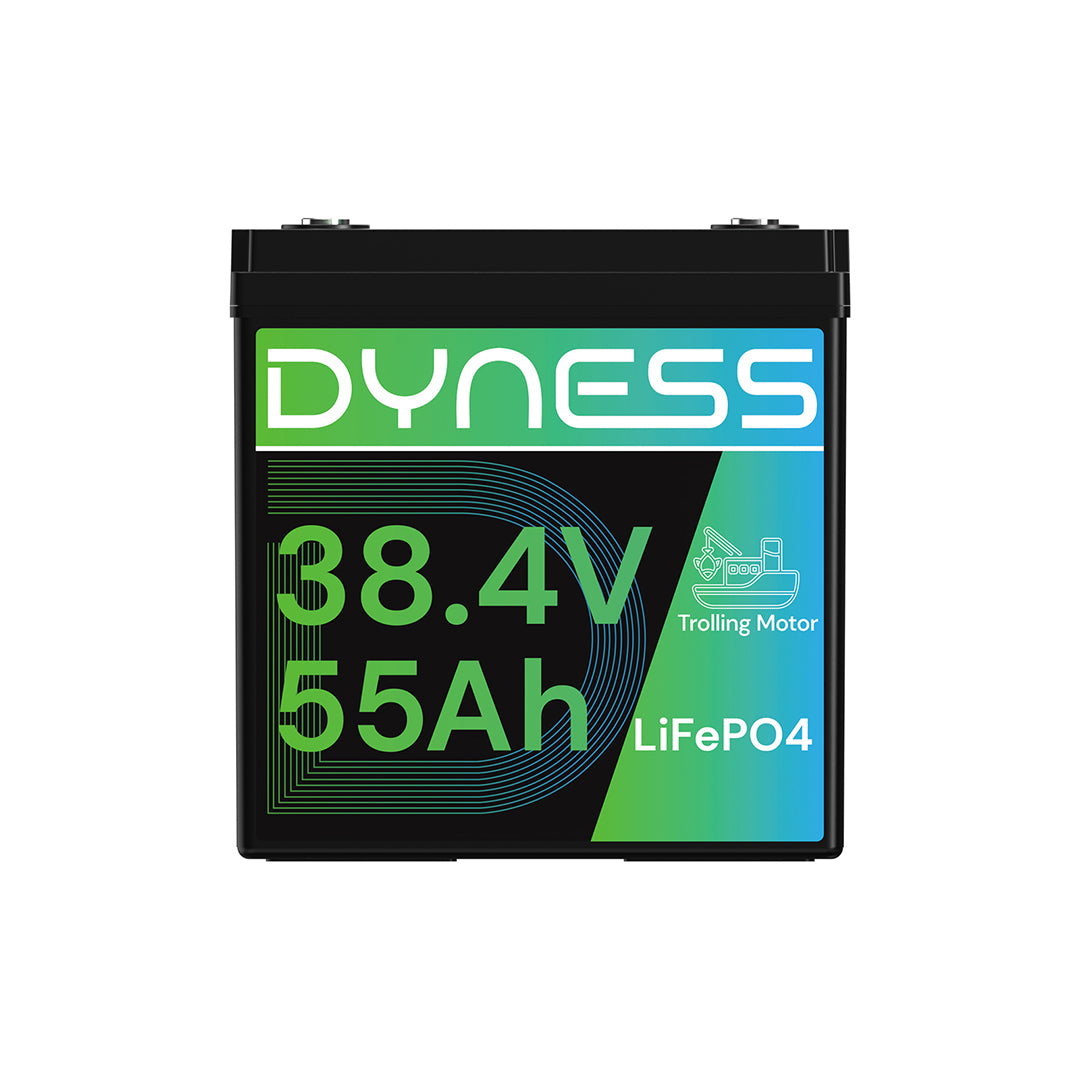

Dyness 36V 55Ah Marine Trolling Motor Lithium Battery
Shipping calculated at checkout
Buy More, Save More
Big End-of-Summer Sale — Take an Extra 10% Off, No Code Needed!
Pickup currently unavailable
LiFePO4 36V Battery — The Ultimate Power for trolling motors and Beyond
Engineered for 100–120 lb trolling motors, this battery also excels in solar systems, off-grid setups, marine vessels, RVs, and outdoor adventures.
All-Weather Performance
Operates reliably in extreme conditions with a built-in low-temperature shutoff: charging stops below 32°F (0°C) and resumes above 41°F (5°C); safely discharges down to -4°F (-20°C).

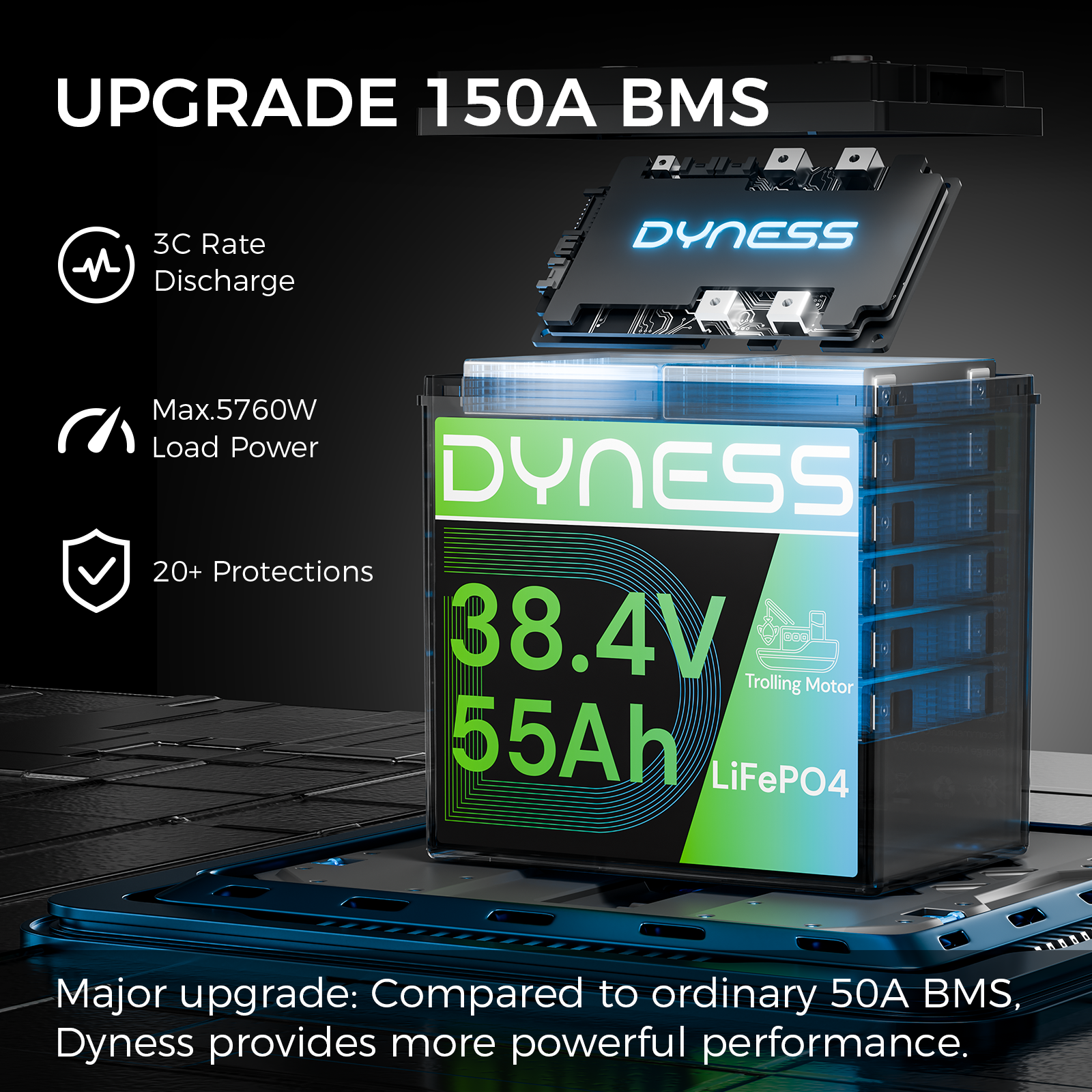

3C discharge rate
Up to 3C continuous discharge,low internal resistance，150A Continuous Discharge Current，450A Surge Discharge Current (5S)，750A Max.Discharge Current (1s)，Ensures stable operation of trolling motor.。。
High Energy, High Output
Delivers 2112Wh of usable energy and up to 5760W peak power. Fully charges in about 5 hours at a recommended 20A charge rate.

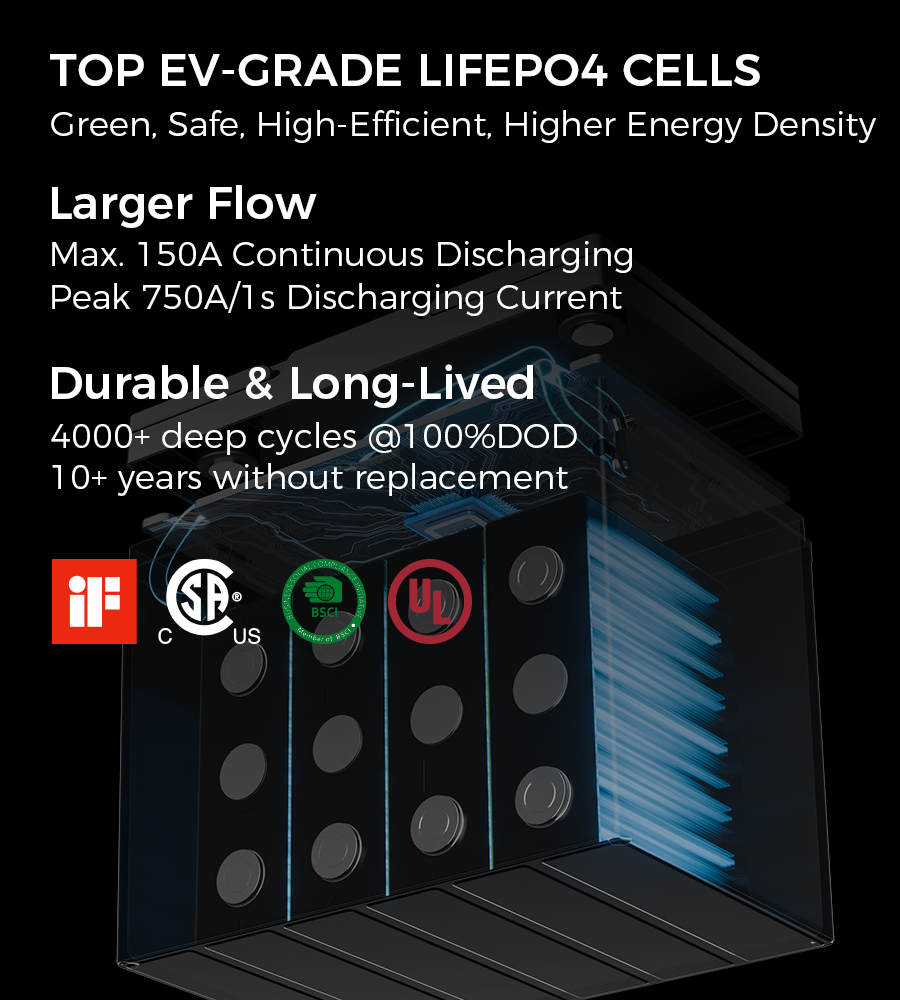

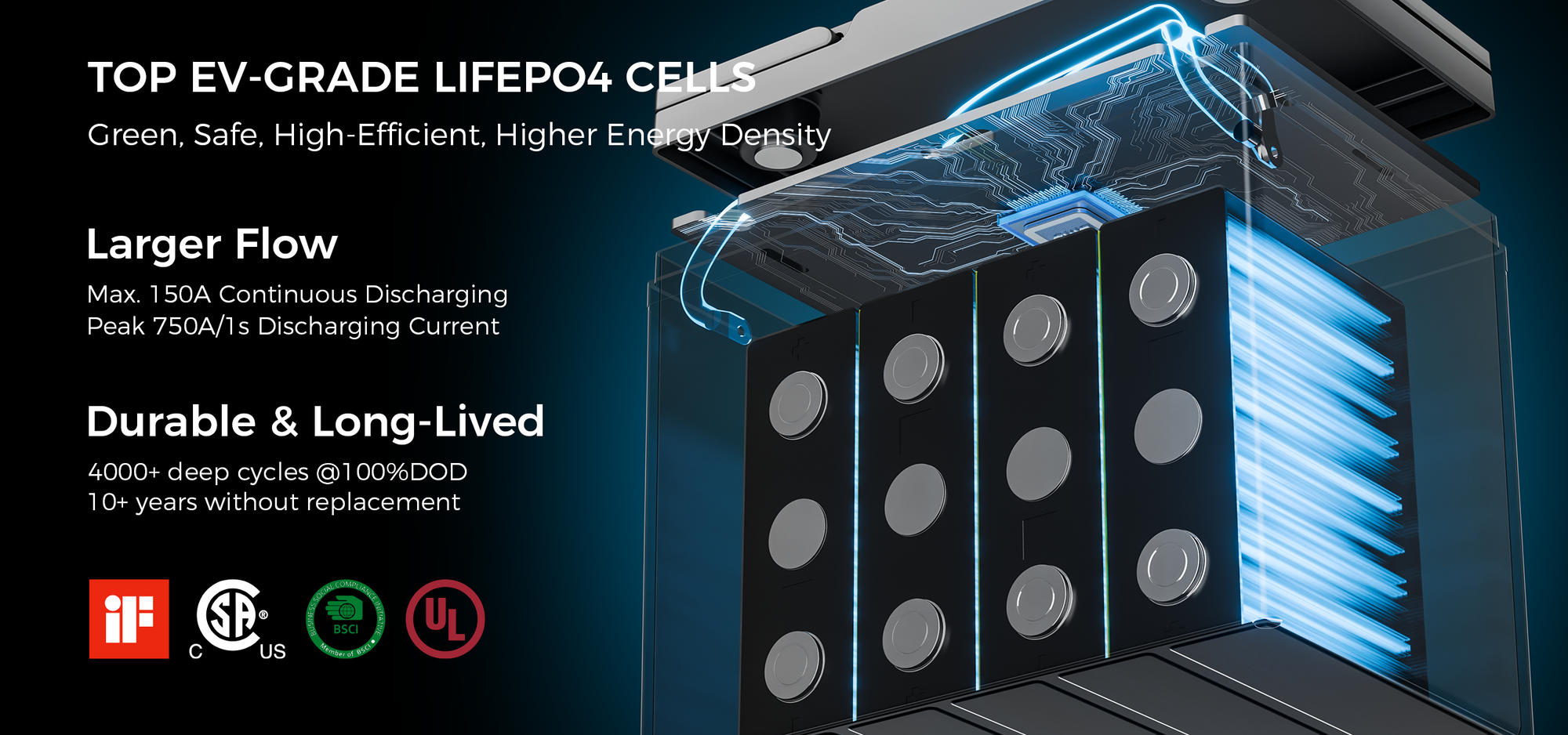

A+ Grade Lithium Iron Phosphate Cells
Over 4,000 cycles at 100% depth of discharge ensure a lifespan of 10+ years. Designed for safety, stability, and sustainability.
Lead-Acid Battery Killer
Up to 70% lighter and 8–10 times longer-lasting than traditional lead-acid batteries, offering far superior performance and value.

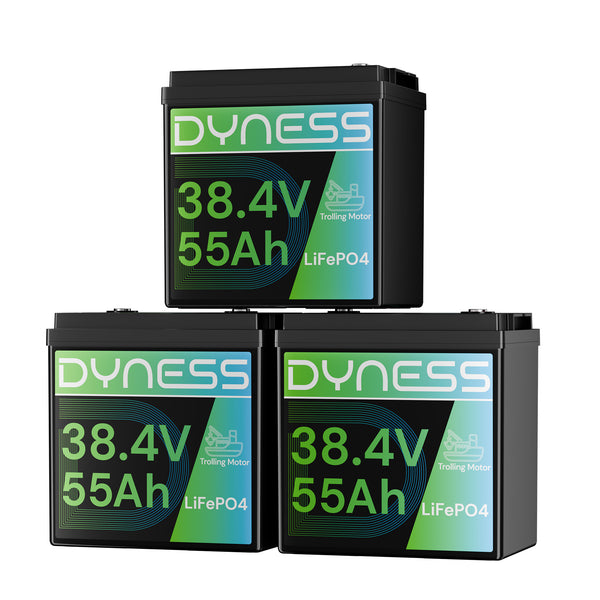

Scalable Energy Storage

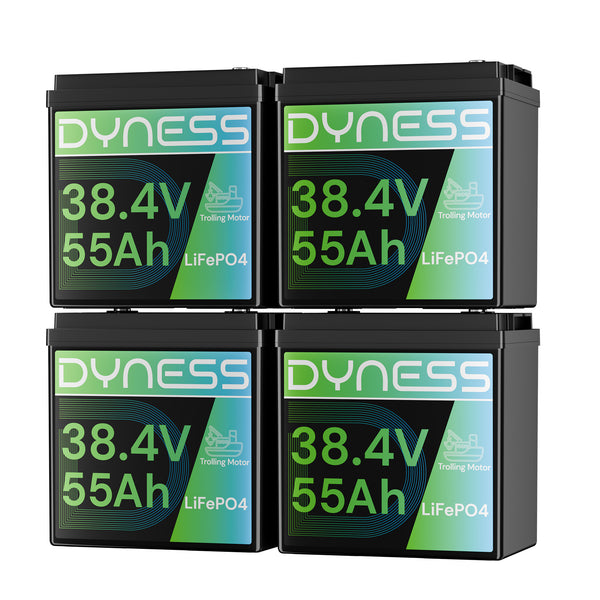

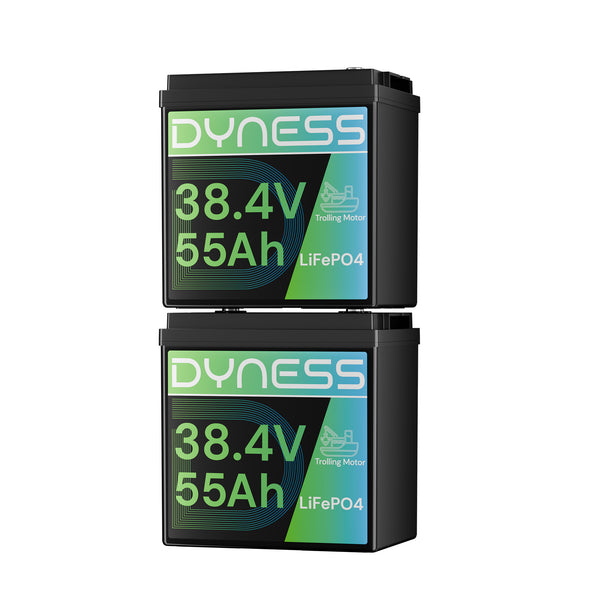

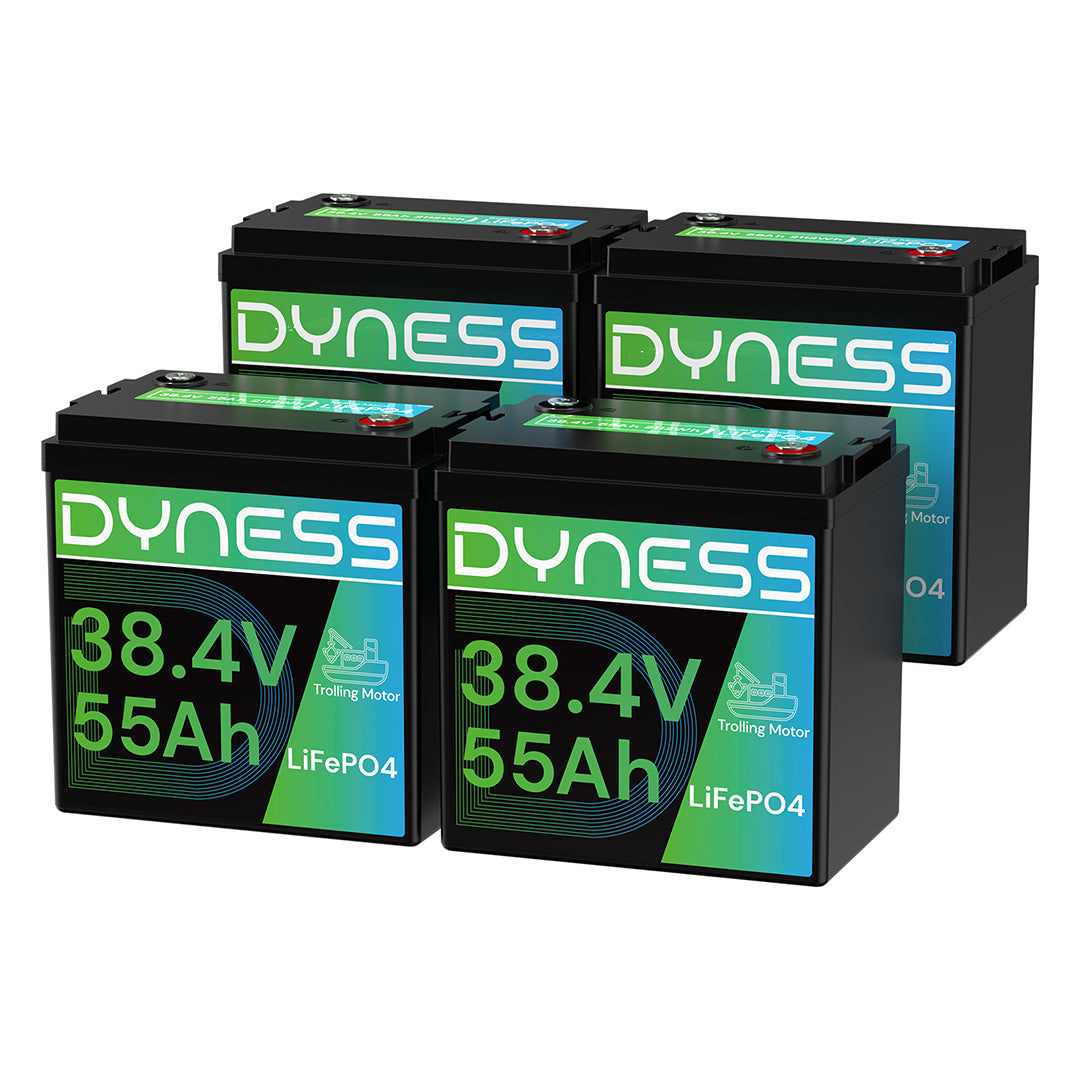

Connect up to 4 batteries in parallel to build a powerful 36V 220Ah system with 8.4kWh of energy and 5.76kW of power.
Rugged and Reliable
IP65-rated for water and dust resistance with a tough black ABS shell that withstands impact and harsh environments.
Flexible Charging Options
Compatible with multiple power sources—LiFePO4 chargers, solar (with MPPT controllers), generators—for dependable power anywhere.
Certified and Tested
FCC, CE, RoHS, UN38.3, and UL certified, and rigorously tested for safety and reliability, giving you complete peace of mind.

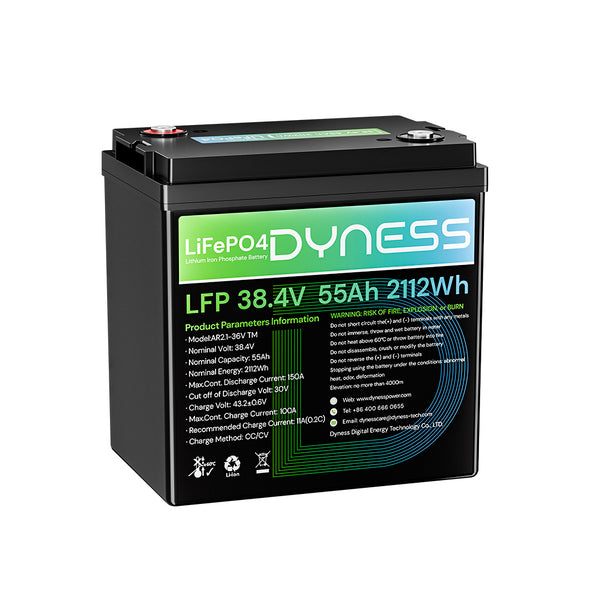

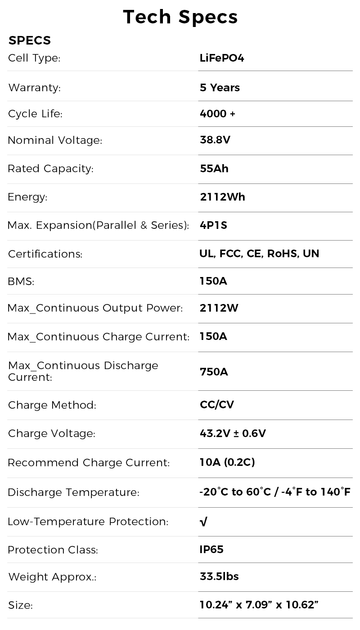

Product Specifications
| Cell Type： | LiFePO4 |
| Warranty： | 5 Years |
| Cycle Life： | 4000+ |
| Nominal Voltage： | 38.4V |
| Rated Capacity： | 55Ah |
| Energy： | 2112W |
| Max. Expansion (Parallel & Series)： | 4P1S |
| Certifications： | UL,FCC,CE,RoHS,UN |
| BMS： | 150A |
| Max. Continuous Output Power： | 2112W |
| Continuous discharge current: | 150A |
| Maximum instantaneous current: | 750A |
| Charge Method： | CC/CV |
| Charge Voltage： | 43.2±0.6V |
| Recommend Charge Current： | 10A(0.2C) |
| Low-Temperature Protection： | √ |
| Weight Approx.： | 33.51lbs |
Faqs
What is the ideal thrust range for a 36V 55Ah trolling motor battery?
100-120 lbs trolling motor
What should I do when I receive the battery?
Upon receiving your battery, please be aware that it may have a low State of Charge (SOC) due to transportation and storage. To ensure optimal performance, we recommend charging the battery immediately to prevent over-discharge.
If you intend to store the battery for an extended period without use, charge it to a SOC between 30% and 50% and perform maintenance every three months. This practice will help maintain its functionality and performance over time.
Can I connect the battery in series or parallel?

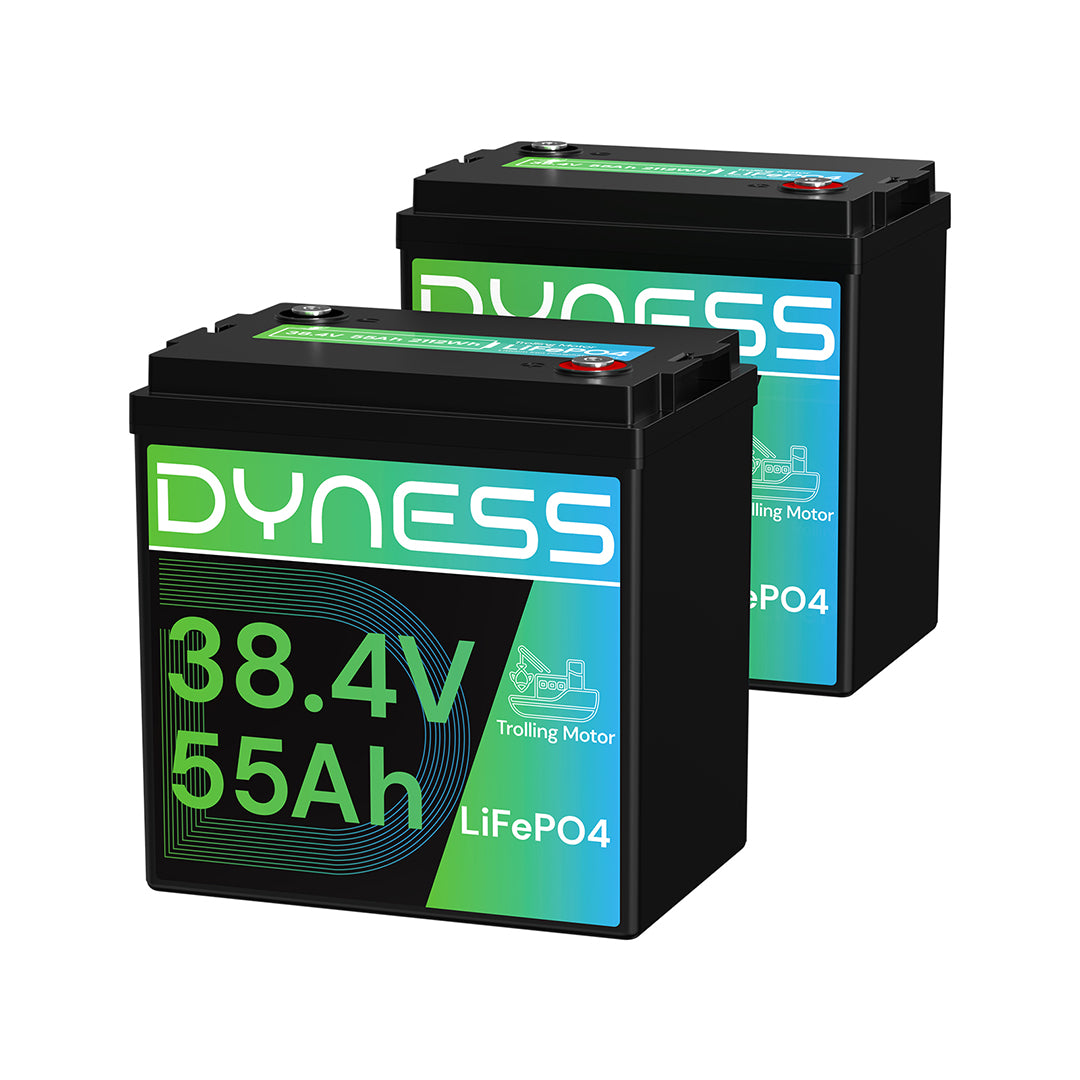

Dyness 36V 55Ah lithium battery supports connecting up to 4 identical batteries in parallel for up to 36V(38.4V)220Ah battery system. However, the battery do not support connect in series.
To connect in series or parallel, batteries should meet the below conditions:
identical batteries with the same battery capacity (Ah) and BMS (A);
from the same brand (as lithium battery from different brands has their special BMS);
purchased in near time (within one month).
Can I charge Dyness 36V 55Ah TM LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
Dyness 36V 55Ah TM LiFePO4 batteries can charge between 0℃ to 50℃ / 32℉ to 122℉. The 36V 55Ah TM version has low-temperature charging protection function, it would cut off charging when it's below 0℃. It's recommended to charge the battery indoor during cold days.
