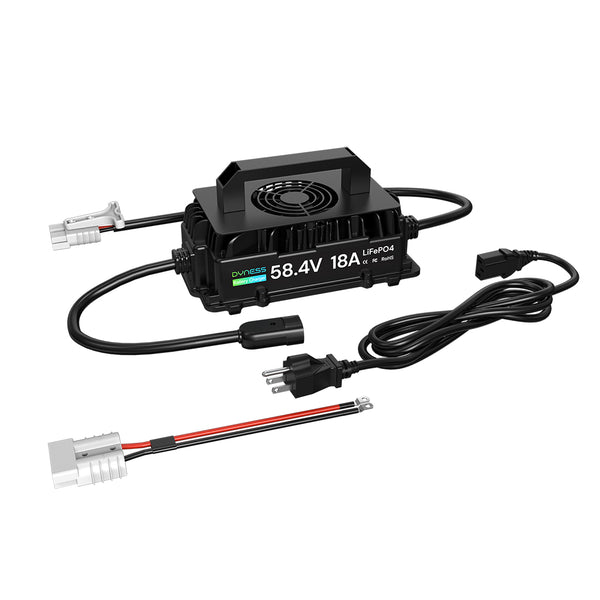

58.4V 18A Lithium Battery Charger

The ARC Series Smart Lithium Battery Chargers are engineered for efficient, intelligent charging of LiFePO₄ batteries used in RVs, marine vessels, golf carts, and home energy systems.
Built with automotive-grade temperature and vibration resistance, these chargers deliver dependable performance even in demanding environments.

⚙️ Key Features

High Efficiency: >90% conversion rate for faster charging and lower energy loss.

Wide Operating Temperature: Performs stably in both hot and cold climates.

Comprehensive Protection:

Over-voltage

Over-current

Short-circuit

Reverse polarity

Over-temperature

Smart Temperature Compensation: Automatically adjusts charging parameters to extend battery life.

100% Full-Load Aging Test: Each unit is rigorously tested to ensure reliability.

Automotive-Grade Durability: Excellent vibration and impact resistance.

⚡ Available Models
Model    Output Voltage    Output Current    Typical Battery System    Efficiency
ARC43.8V-25A    43.8 V    25 A    36 V LiFePO₄ Battery    ≥ 90 %
ARC58.4V-18A    58.4 V    18 A    48 V LiFePO₄ Battery    ≥ 90 %

🧱 Installation & Mounting

To ensure safe and effective operation:

Mount on a non-combustible surface (metal, brick, or concrete).

Leave at least 3 inches (8 cm) clearance around the cooling fan.

Preferred Mounting Positions:

Horizontally with the fan facing upward

Vertically with AC/DC cables facing up or down

Side-mounted with cables facing left or right

Avoid: Mounting with the fan facing downward.

⚠️ Safety Precautions

Always use a grounded AC outlet.

Charge only compatible LiFePO₄ batteries matching the rated voltage and capacity.

Disconnect from AC power after use.

Ensure adequate ventilation when charging indoors.

Avoid sparks, open flames, or smoking near the battery.

Charger surface may become hot during operation — do not touch.

Only qualified technicians should service or re-program the unit.

📦 Technical Specifications
Parameter    ARC43.8V-25A    ARC58.4V-18A
Output Voltage    43.8 V    58.4 V
Output Current    25 A    18 A
Efficiency    ≥ 90 %    ≥ 90 %
Cooling    Active fan cooling    Active fan cooling
Mounting Surface    Metal / Brick / Concrete    Metal / Brick / Concrete
Protection    OVP, OCP, OTP, SCP, Reverse Polarity    OVP, OCP, OTP, SCP, Reverse Polarity
Operating Temperature    -20 °C ~ +50 °C    -20 °C ~ +50 °C
Application    36 V Systems (e.g. Golf Cart)    48 V Systems (e.g. RV, Solar)
🛡️ Warranty & Support

All Dyness chargers are fully tested before shipping and covered by our limited manufacturer warranty.
For service or technical support, please contact your authorized Dyness partner or visit
