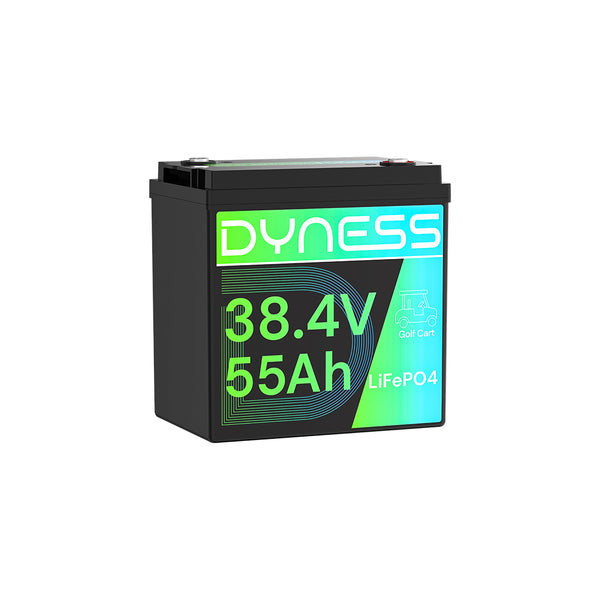

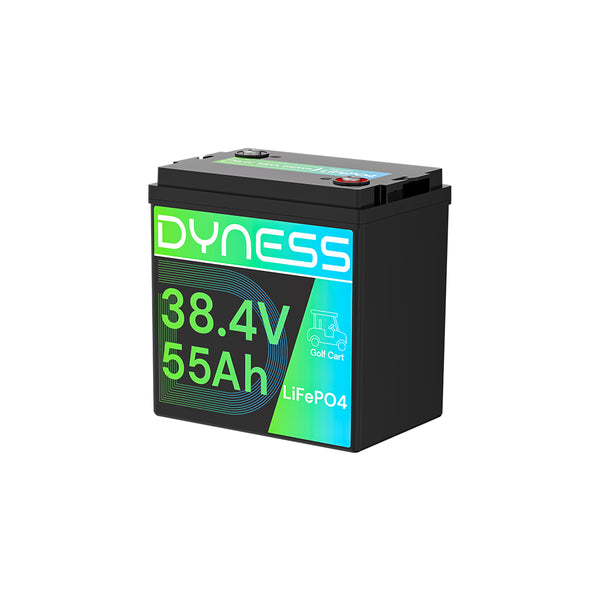

Dyness 36V 55Ah Smart Deep Cycle Lithium Battery
Shipping calculated at checkout
Buy More, Save More
Big End-of-Summer Sale — Take an Extra 10% Off, No Code Needed!
Pickup currently unavailable
LiFePO4 Golf Cart Battery — Built for Power and Endurance

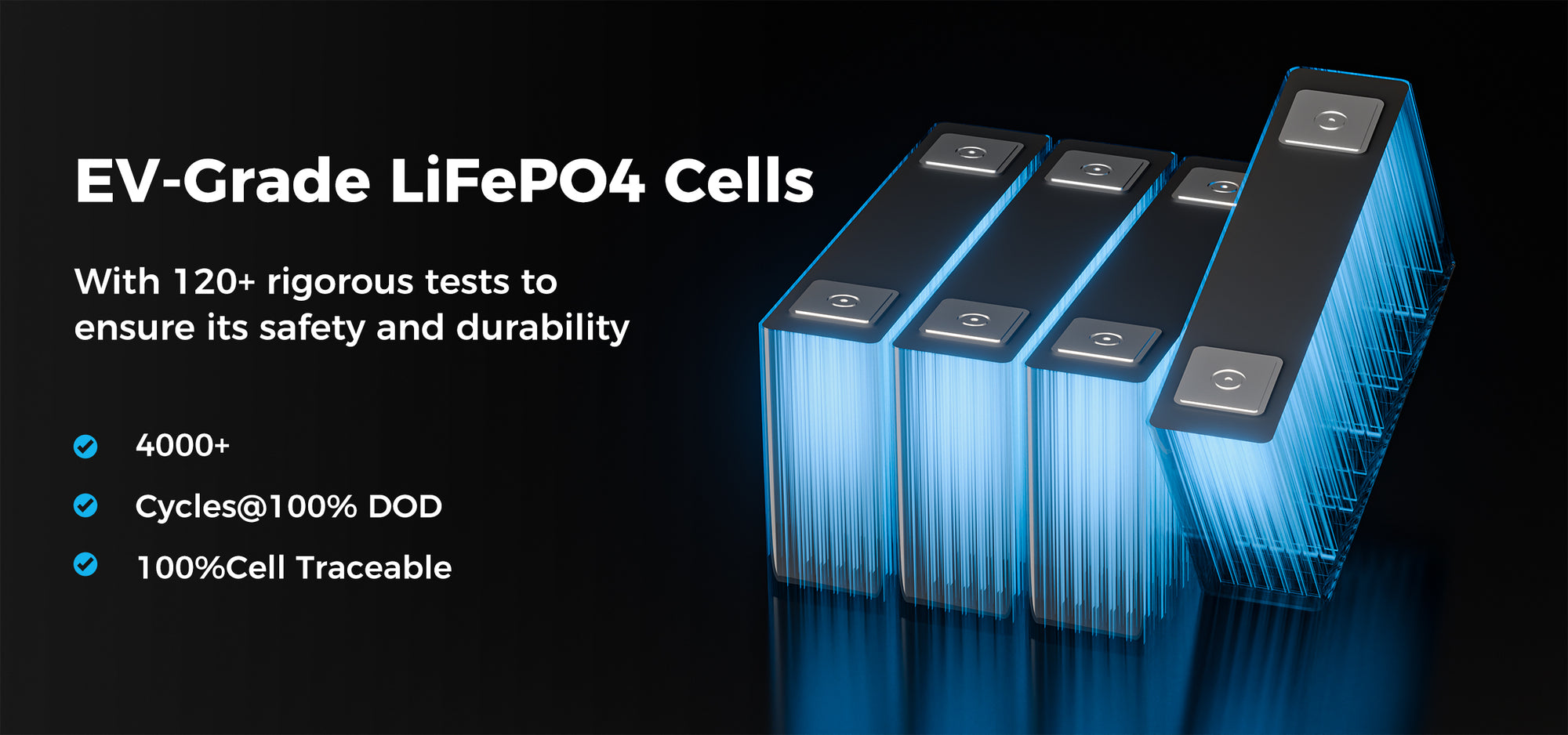

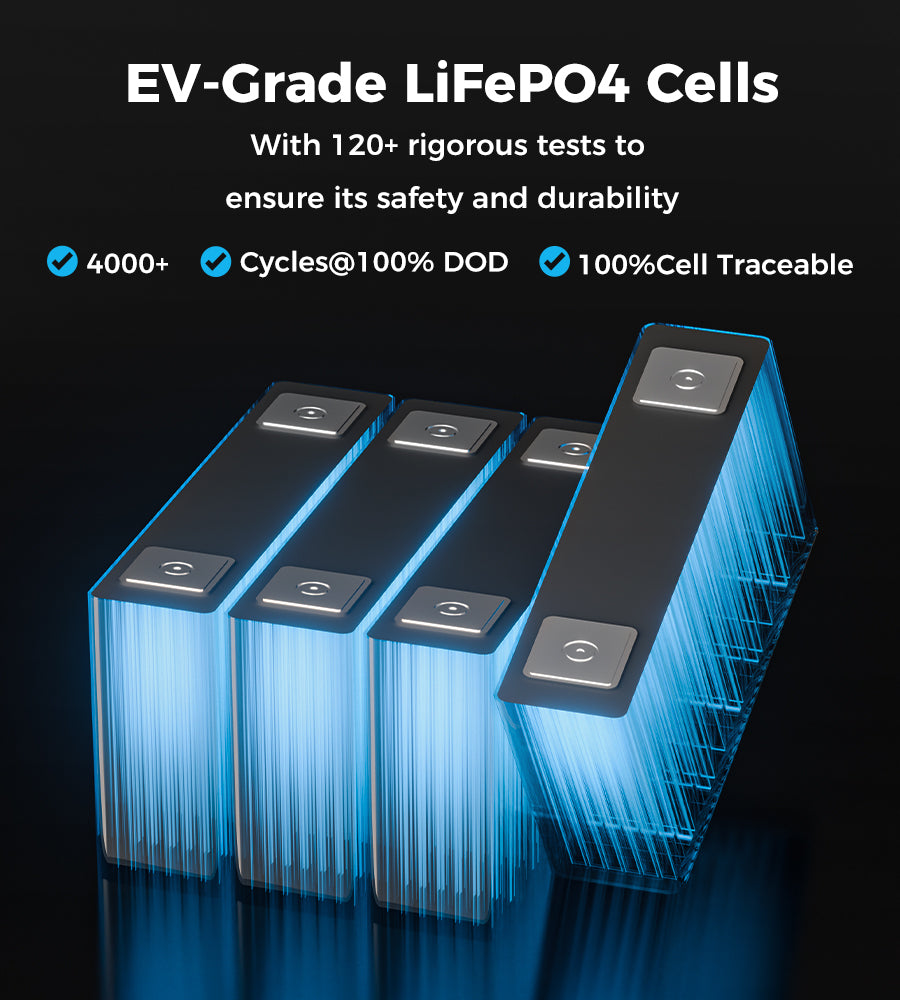

A+ Grade LiFePO4 Cells
Delivers over 10 years of service life with 4,000+ cycles at 100% depth of discharge (DOD), 6,000+ cycles at 80% DOD, and 15,000+ cycles at 60% DOD.
3C Discharge Rate for Peak Performance
Offers up to 3C continuous discharge with low internal resistance—150A continuous, 450A surge for 5s, and 750A peak for 1s—powering your golf cart with ease even on steep hills.
Unleash Exceptional Energy
Provides 2112Wh of usable energy, driving your golf cart up to 18–25 miles on a single charge.
Durable and Reliable

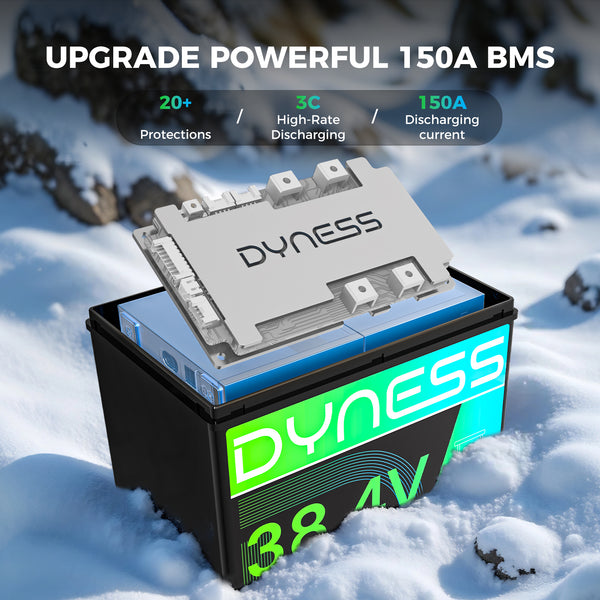

Equipped with a robust 150A battery management system (BMS) that safeguards against overcurrent, overcharge, over-discharge, short circuit, and overheating.
Compact Dimensions

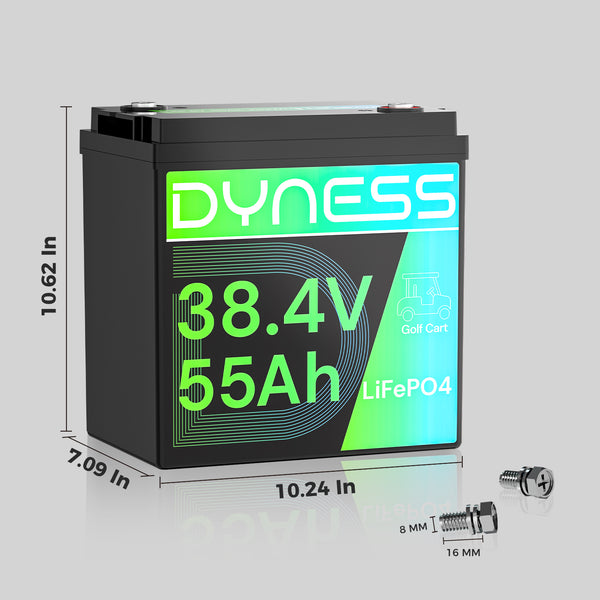

Measures 10.24" × 10.63" × 7.9" — designed to fit most golf cart battery compartments.
Lower Total Cost of Ownership
Costs as little as $0.10 per kWh and can save about $100 annually on operations by eliminating frequent replacements and routine maintenance.
Versatile Applications
Ideal for golf carts, 36V ATVs, electric tricycles , boat lifts, electric outboard motors, and home backup power systems.
Expandable Power

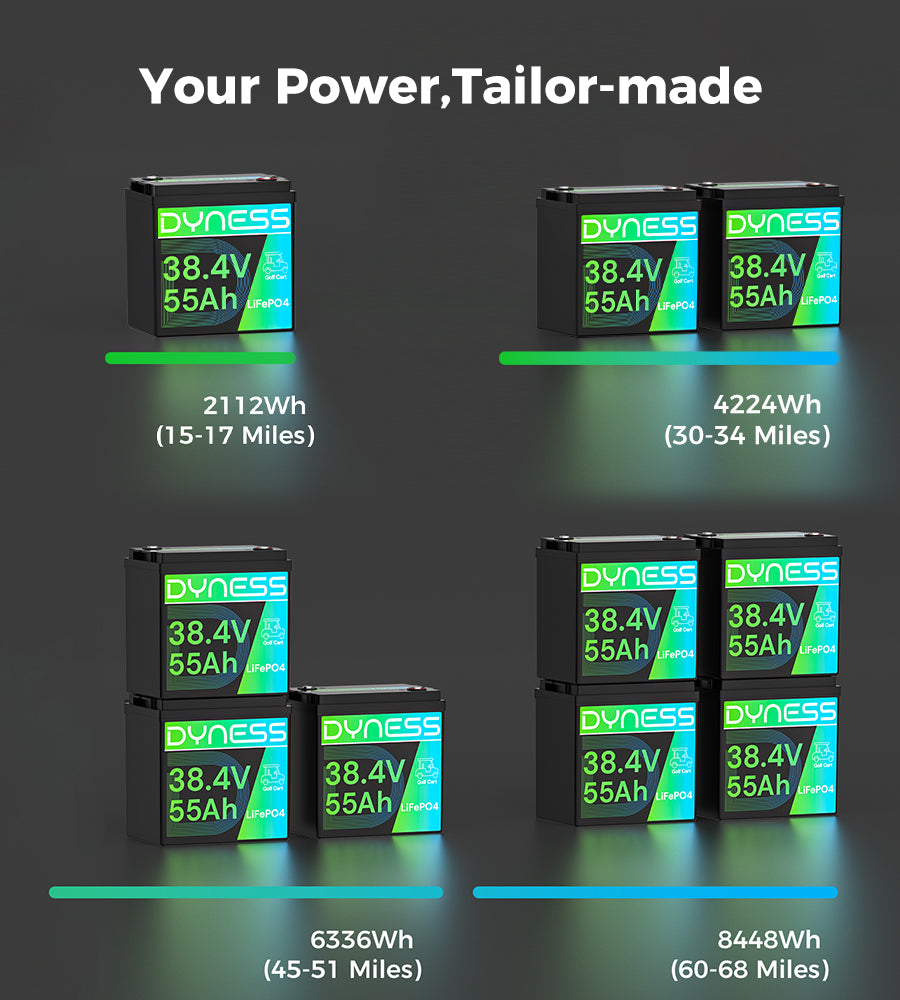

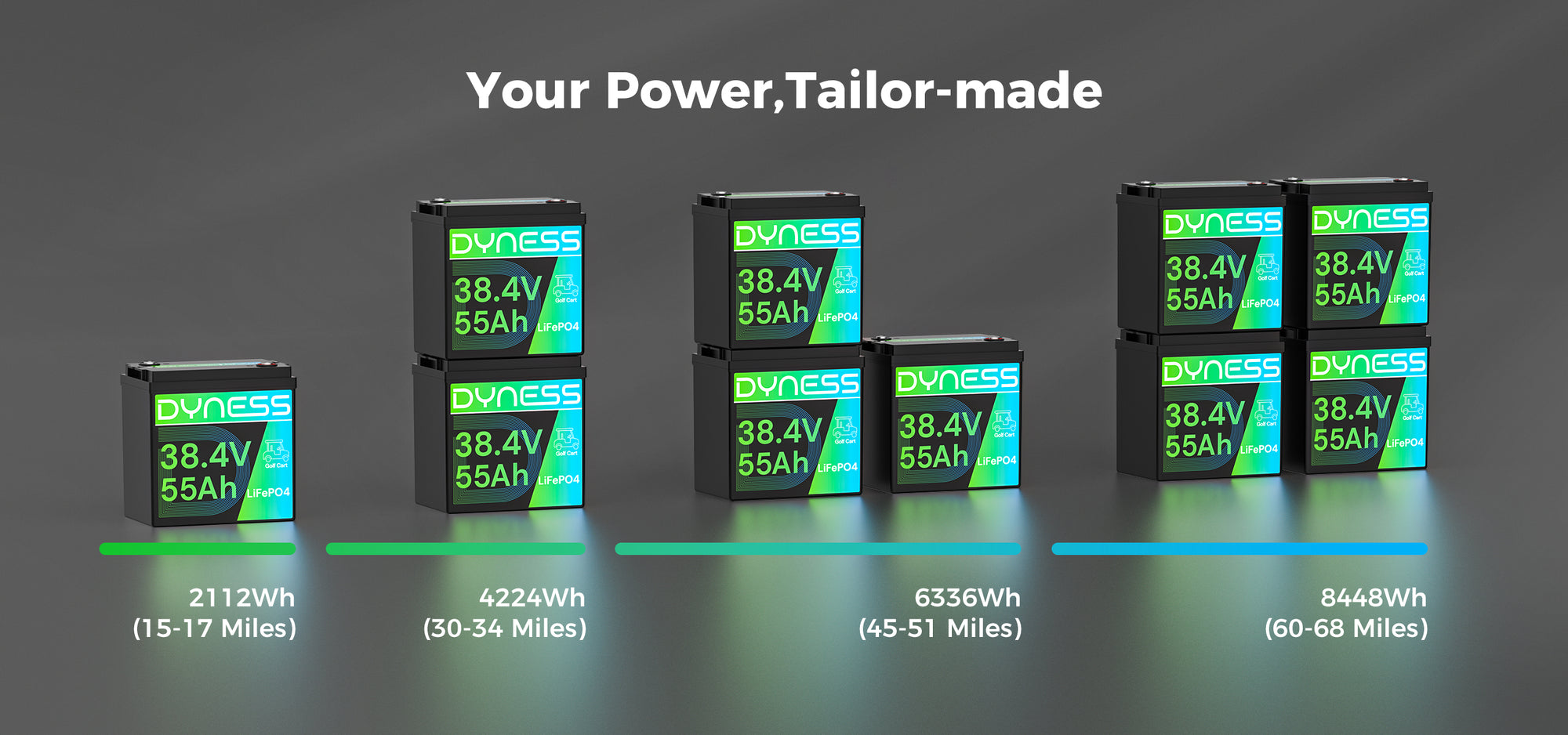

Connect up to 4 batteries in parallel to build a 38.4V 220Ah system delivering 8448Wh of energy.
Outstanding Service
Enjoy fast delivery, 24-hour customer support, and a 5-year warranty for complete peace of mind.

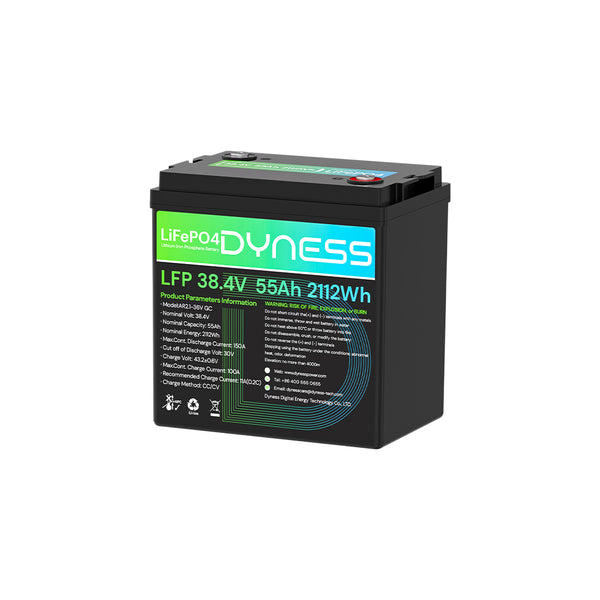

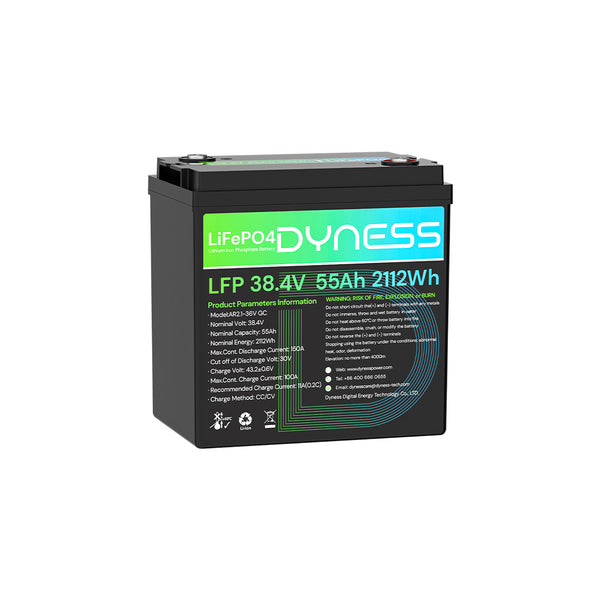

Product Specifications
| Specification | Details |
|---|---|
| Cell Type： | LiFePO4 |
| Warranty： | 5 Years |
| Cycle Life： | 4000+ |
| Nominal Voltage： | 38.4V |
| Rated Capacity： | 55Ah |
| Energy： | 2112W |
| Max. Expansion (Parallel & Series)： | 4P1S |
| Certifications： | UL,FCC,CE,RoHS,UN |
| BMS： | 150A |
| Max. Continuous Output Power： | 2112W |
| Continuous discharge current: | 150A |
| Maximum instantaneous current: | 750A |
| Charge Method： | CC/CV |
| Charge Voltage： | 43.2±0.6V |
| Recommend Charge Current： | 10A(0.2C) |
| Low-Temperature Protection： | √ |
| Weight Approx： | 33.51lbs |
Faqs
How fast does a 36V golf cart go?
The speed of a 36V golf cart can vary depending on factors such as the make and model, as well as any modifications made to the cart. Generally, a stock 36V golf cart can reach speeds of around 12 to 15 miles per hour.
How many amps does a 36V golf cart draw?
The amperage draw of a 36V golf cart varies based on factors such as terrain, weight load, and the condition of the batteries and motor. On average, it can range from 20-30 amps.
How will installing lithium batteries improve the performance of a golf cart?
Lithium batteries can deliver more power to your golf cart than traditional lead-acid batteries. This means you can tackle hills and inclines with ease, and your golf cart will have a higher top speed.
What is the life expectancy of a lithium golf cart battery?
Lithium batteries have a significantly longer lifespan compared to lead-acid batteries, Dyness lithium golf cart batteries can last 10+ years.
How to charge 36V 55Ah lithium golf cart battery?

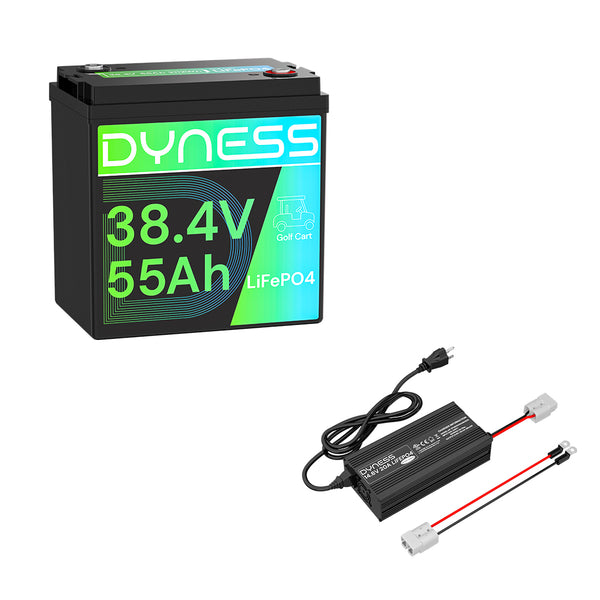

1. LiFePO4 Battery Charger
We recommend using a 43.8V battery charger to maximize the capacity
Recommend charging voltage: 42.6V ~ 43.8V
Recommend charging current: 9A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 22.5A (0.5C): the battery will be fully charged in around 2hrs to around 90% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
2. Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 500W solar panels. It may take more than one day to fully charge the battery by ≥500W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
3. Generator/Alternator
If your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 42.6V ~ 43.8V.
The Recommended Charging Current: ① 9A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 22.5A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
