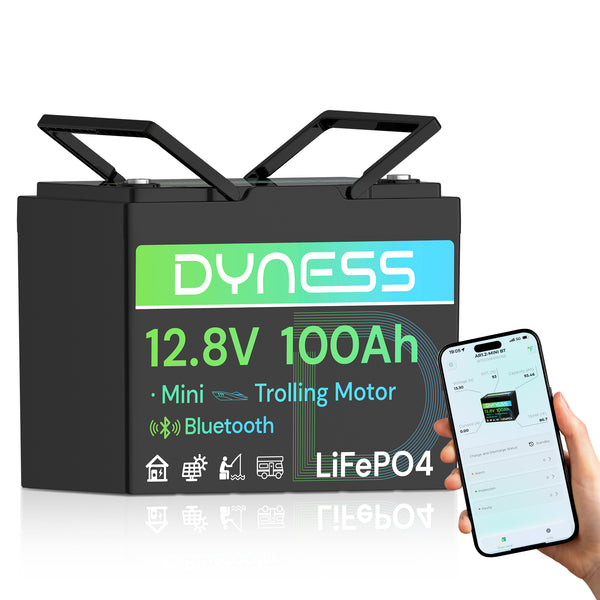

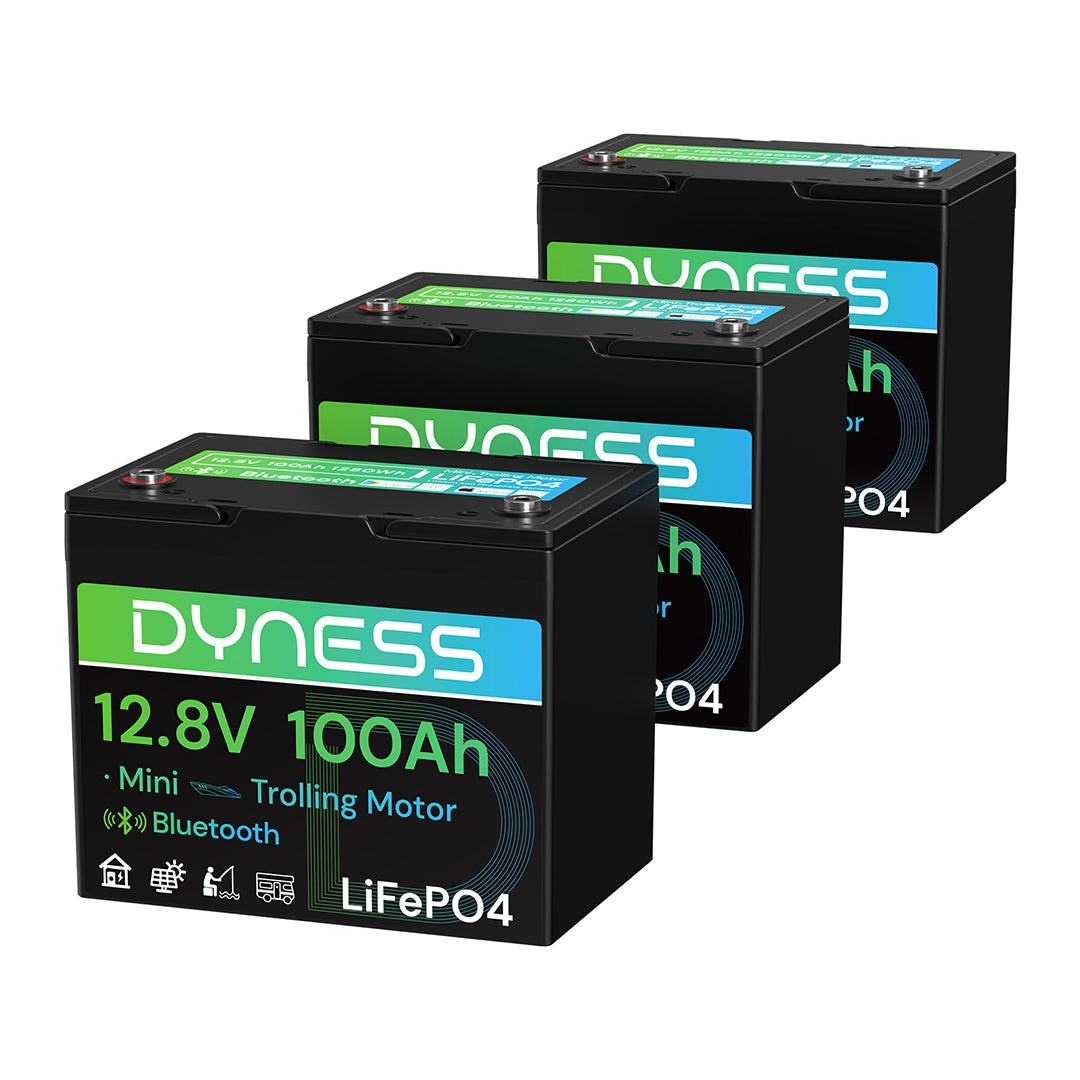

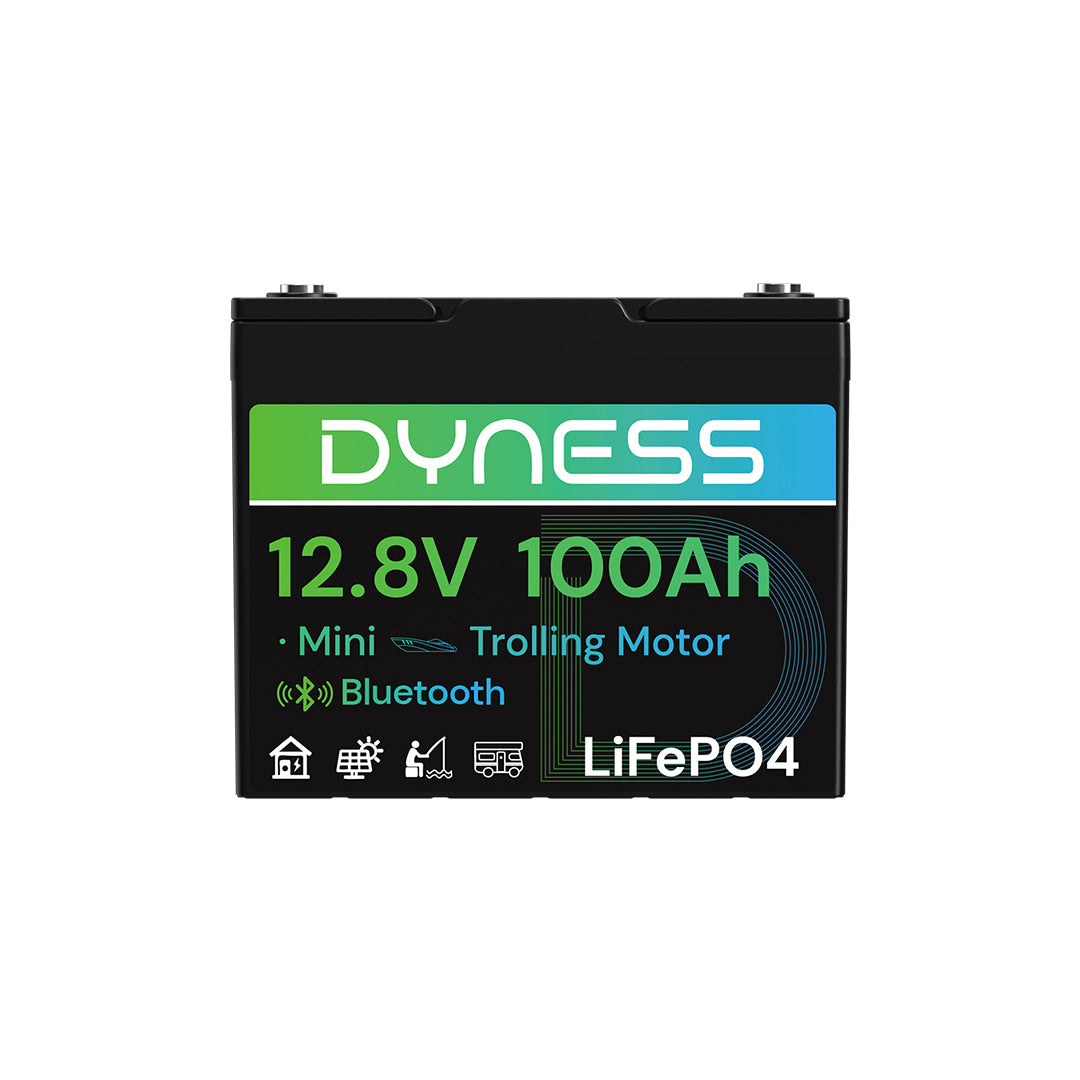

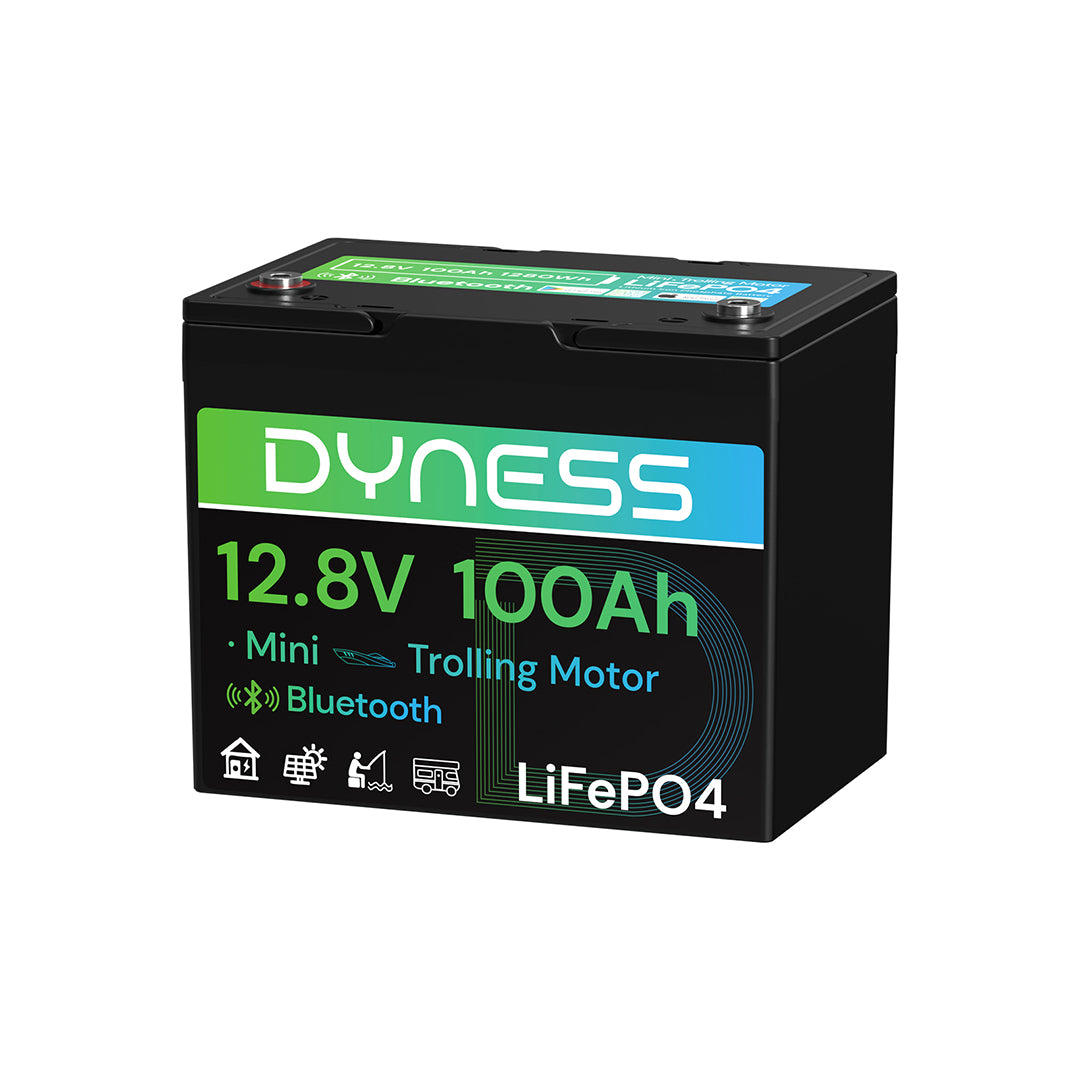

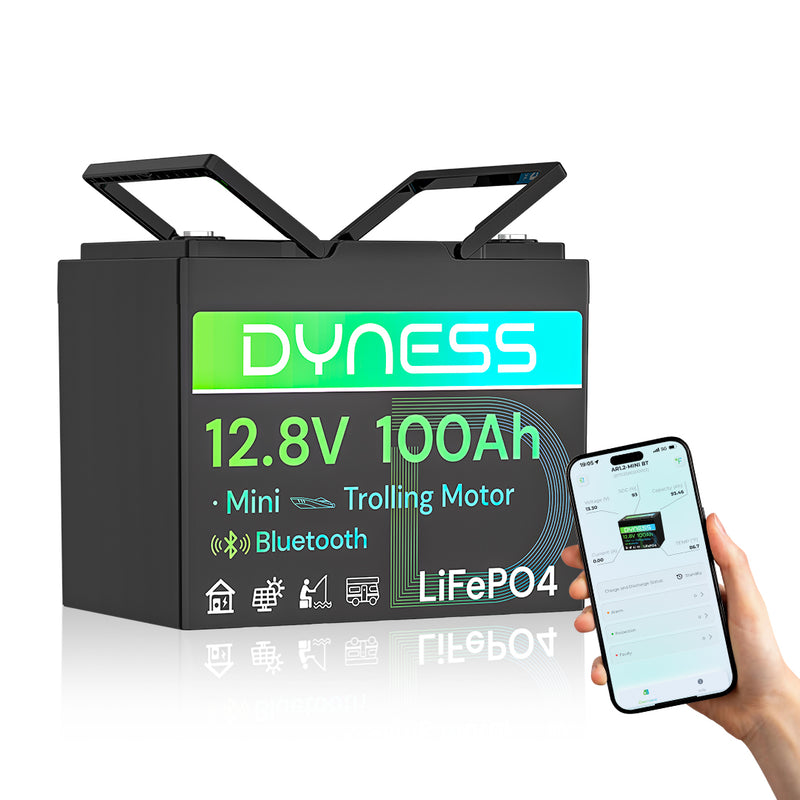

Dyness 12V 100Ah Group 24 Bluetooth-Enabled LiFePO4 Deep Cycle Battery
Shipping calculated at checkout
Buy More, Save More
Subscribe to GET AN EXTRA 15% OFF!

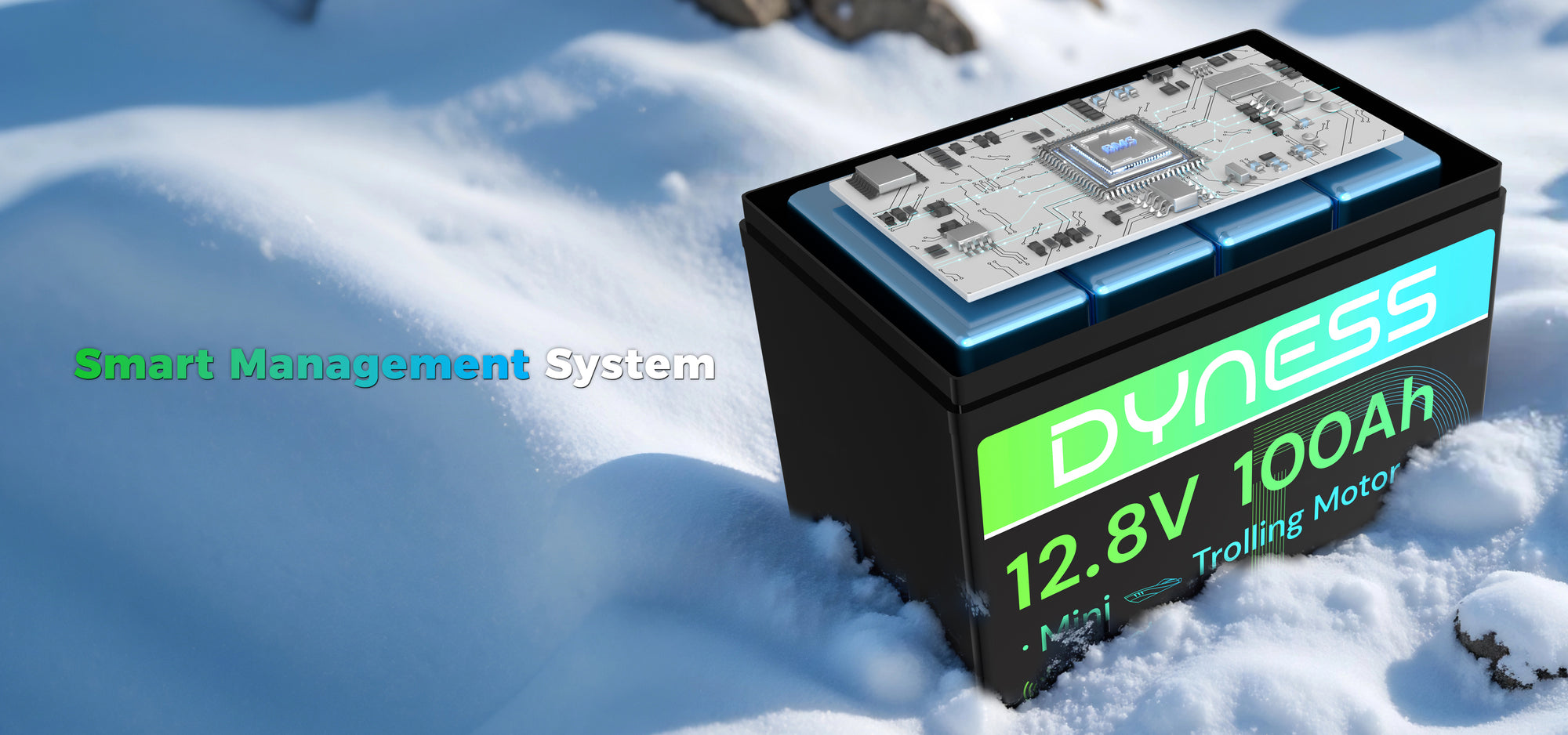

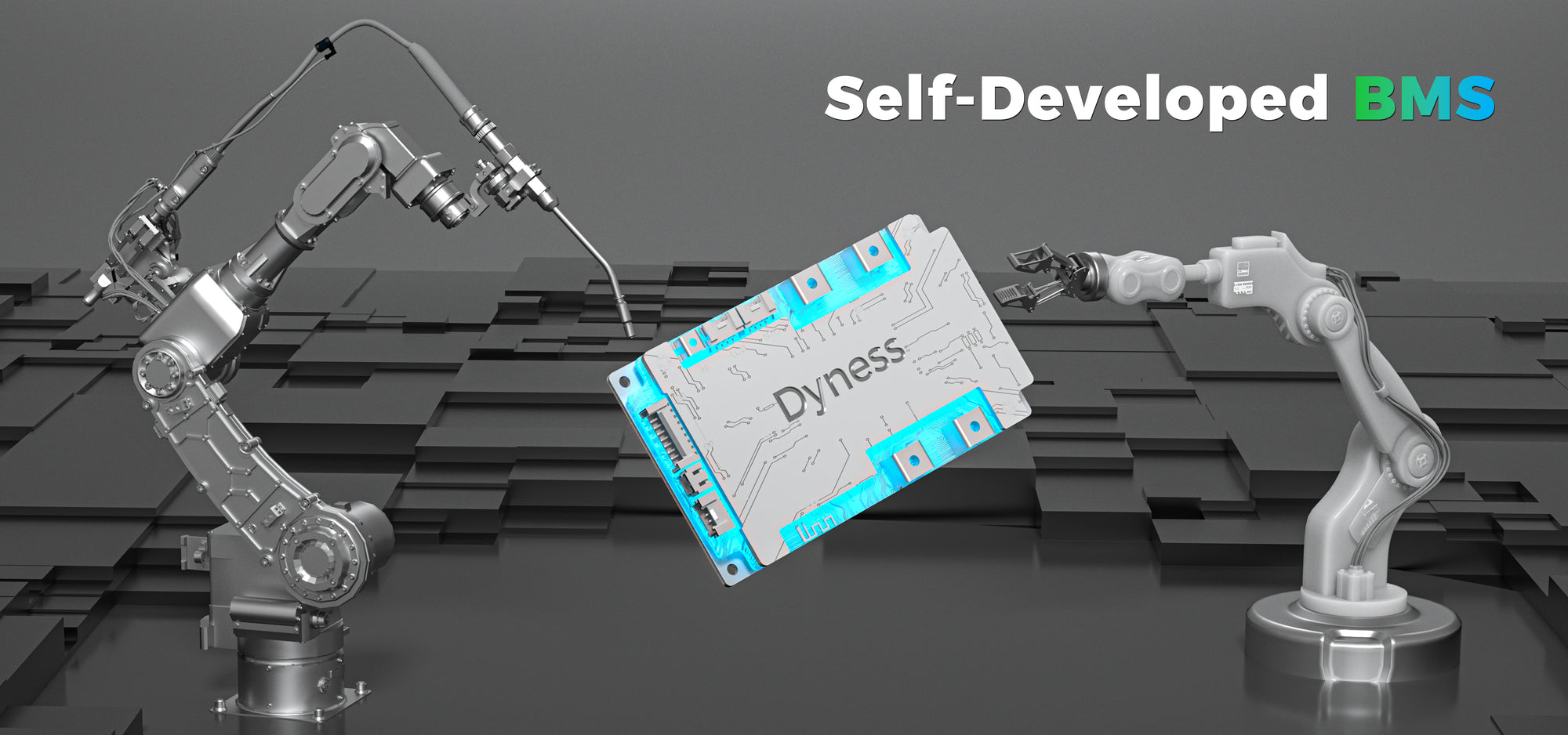

[Innovative 100A BMS with Bluetooth 5.0]
Simply scan the QR code in the specification sheet to connect the battery via our Bluetooth app. This ensures a stable, interference-free connection, allowing you to monitor real-time battery status, including SOC and voltage. The upgraded BMS includes self-recovery protection and pre-charge functionality, simplifying operation and enhancing compatibility for a superior user experience.
[BCI Group 24, Universal Fit]
Introducing the Dyness 12V 100Ah Group 24 Bluetooth Battery, precisely engineered to meet BCI Group 24 standards. Its seamless drop-in design makes it easy to upgrade from lead-acid to lithium. With wide compatibility, it is the perfect choice for RVs, off-grid camping and living, or home solar storage systems.

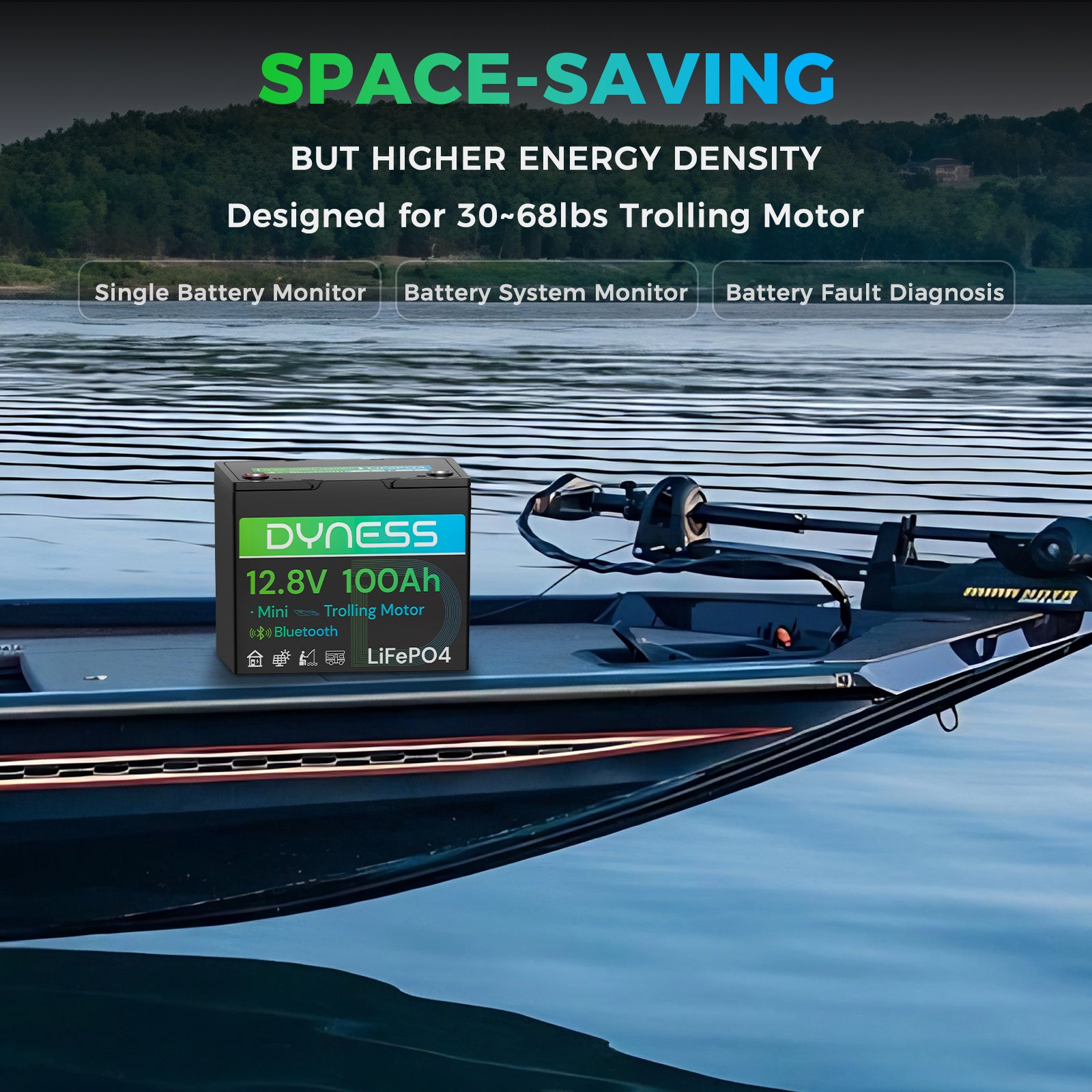

[Engineered for Trolling Motors – Enhance Your Fishing Experience]

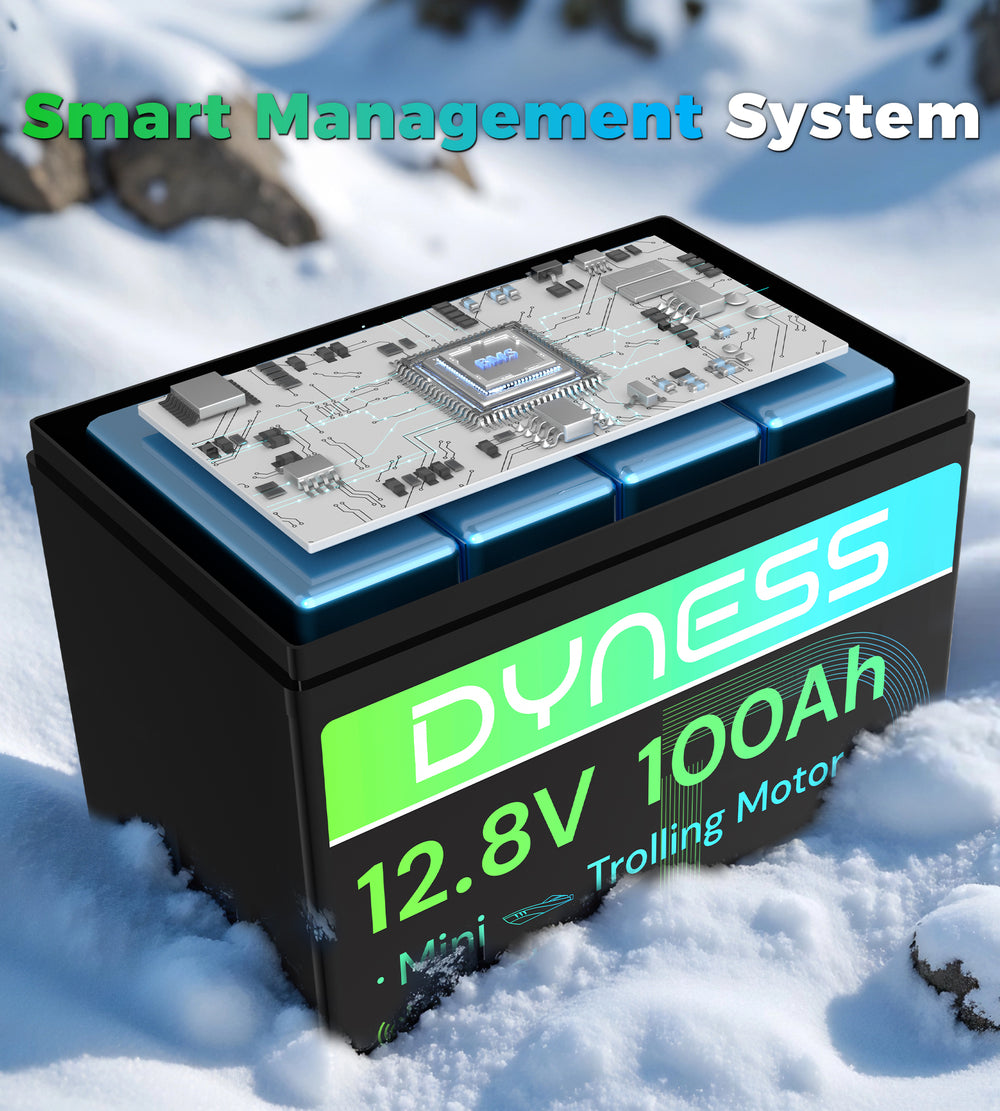

Our advanced Battery Management System (BMS) offers complete protection against overcharge, over-discharge, overcurrent, short circuit, high temperature, and low temperature. The low-temperature cutoff feature maximizes battery life and charging efficiency, ensuring safe and reliable power supply even in the coldest environments.
[Warranty & Support for Peace of Mind]

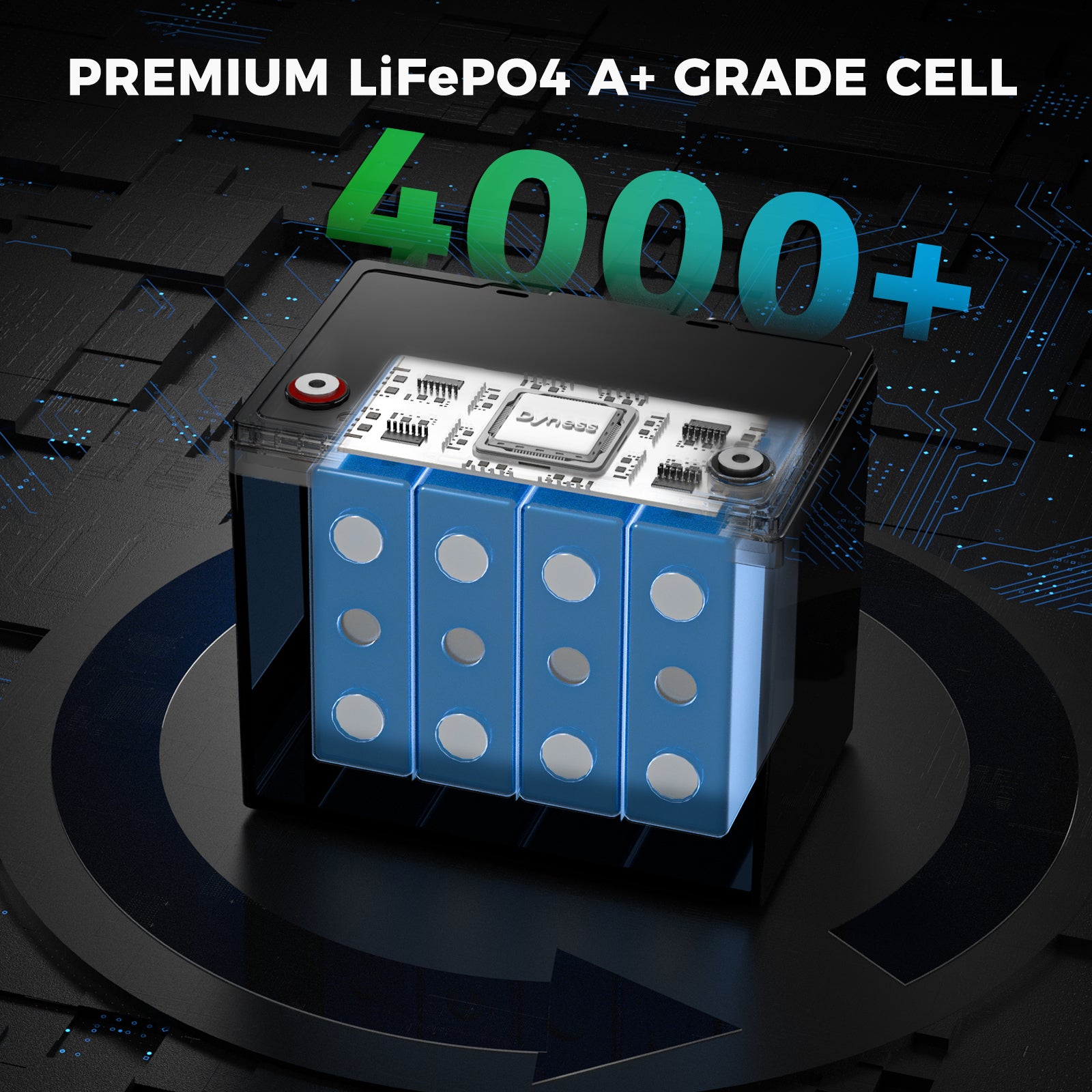

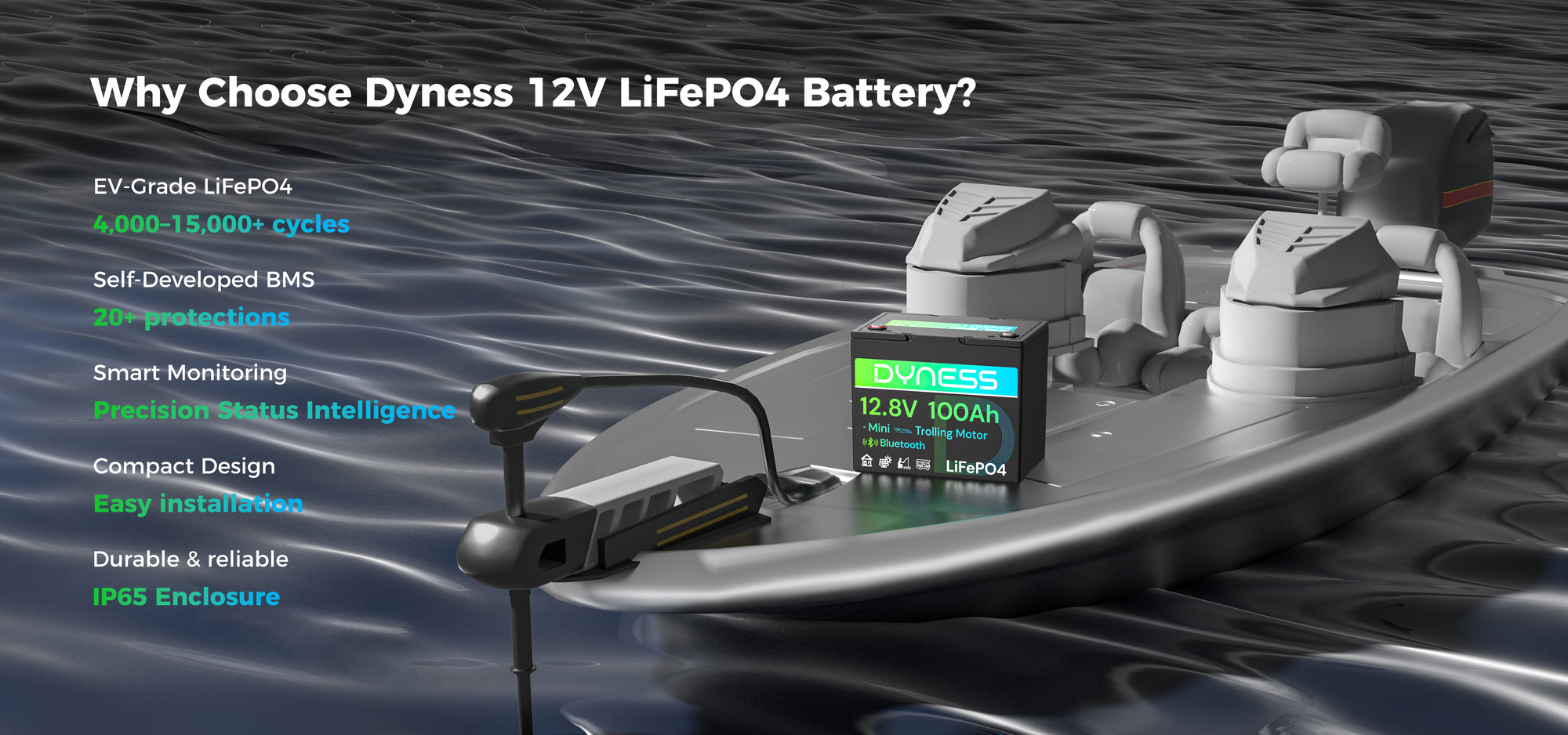

The Dyness 12V 100Ah Bluetooth LiFePO4 battery delivers up to 10 years of service life and comes with a 5-year warranty. It supports 4,000 cycles at 100% depth of discharge (DOD), 6,000+ cycles at 80% DOD, and over 15,000 cycles at 60% DOD. For optimal performance, charge at 14.6V with a 20A current—fully charging in about 5 hours.
[US Warehouses & Fast Shipping]
We ship from California and Georgia. Typically, your battery will arrive within 2–5 business days, depending on your location. We provide a 5-year warranty and 24/7 customer support. Please contact us to confirm stock availability.
Note: This battery is not suitable for use as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuums, or 4WD lawn tractors. For more details, please contact Dyness at dynesssupport@dyness-tech.com
Pickup currently unavailable

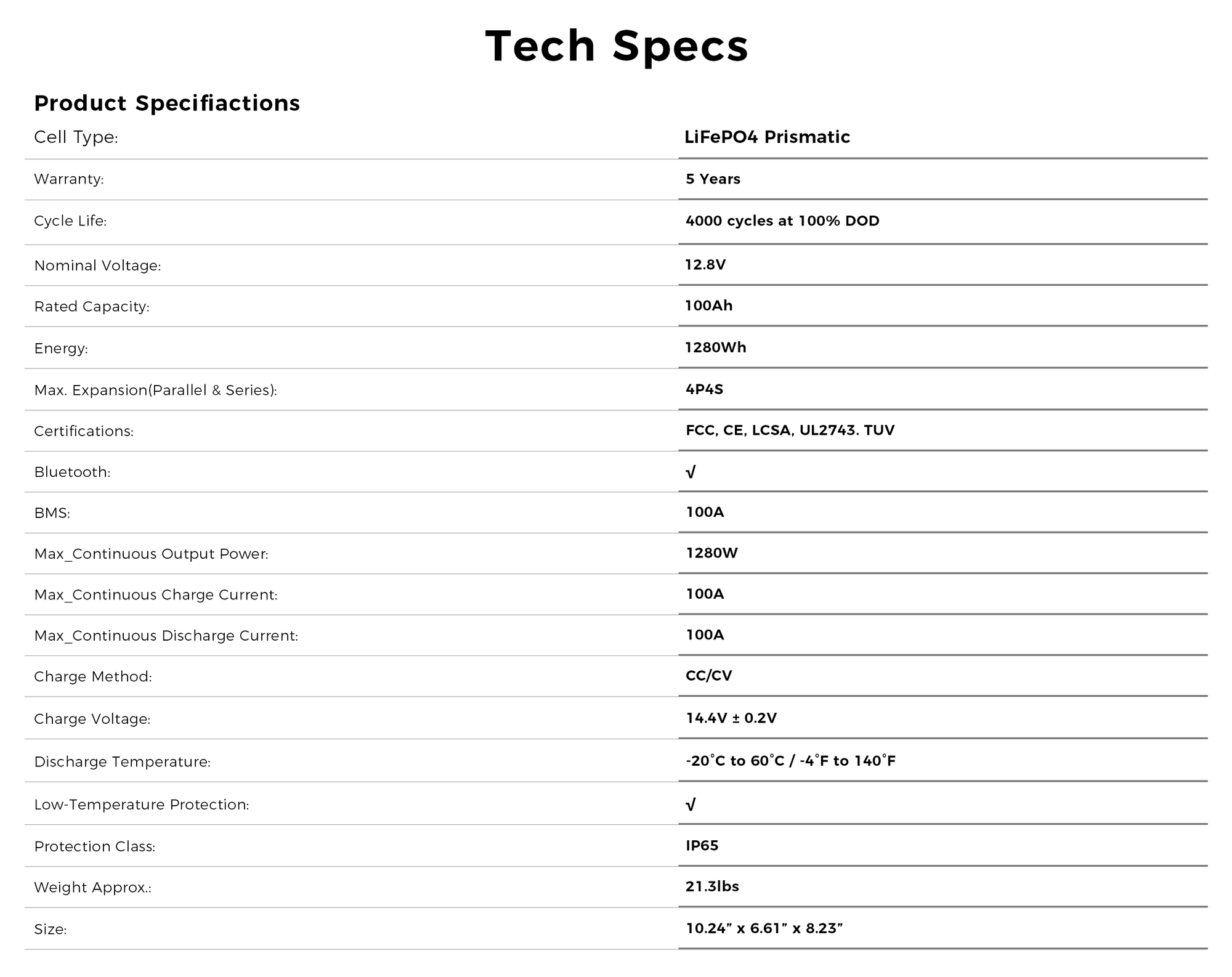

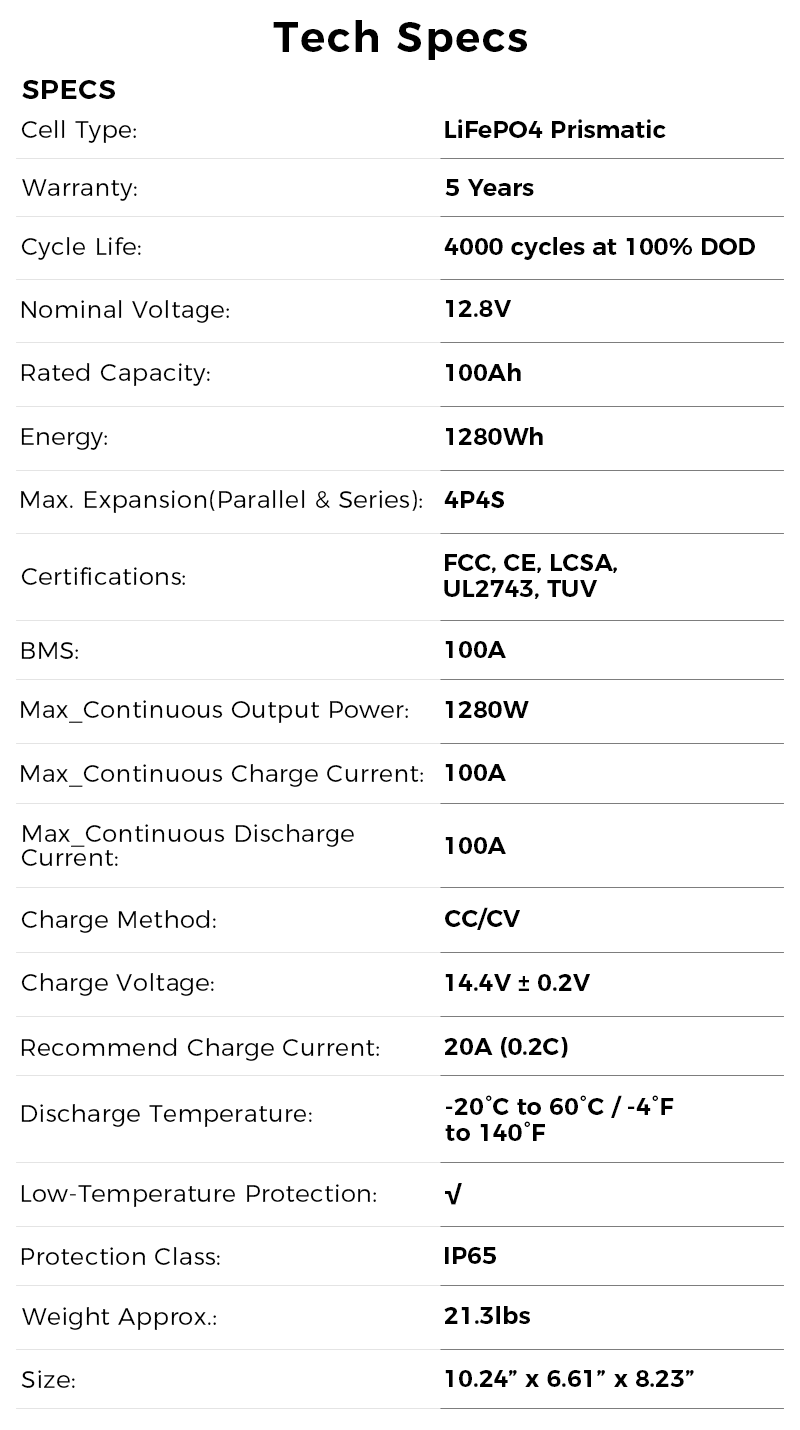

Product Specifications
| Cell Type： | LiFePO4 Prismatic |
| Warranty： | 5 Years |
| Cycle Life： | 4000 cycles at 100% DOD |
| Nominal Voltage： | 12.8V |
| Rated Capacity： | 100Ah |
| Energy： | 1280Wh |
| Max. Expansion (Parallel & Series)： | 4P4S |
| Certifications： | FCC，CE，LCSA，UL2743，TÜV |
| Bluetooth： | √ |
| BMS： | 100A |
| Max. Continuous Output Power： | 1280W |
| Max. Continuous Charge Current： | 100A |
| Max. Continuous Discharge Current： | 100A |
| Charge Method： | CC/CV |
| Charge Voltage： | 14.4V ± 0.2V |
| Discharge Temperature： | -20℃ to 60℃ / -4℉ to 140℉ |
| Low-Temperature Protection： | √ |
| Protection Class： | IP65 |
| Weight Approx.： | 21.3lbs |

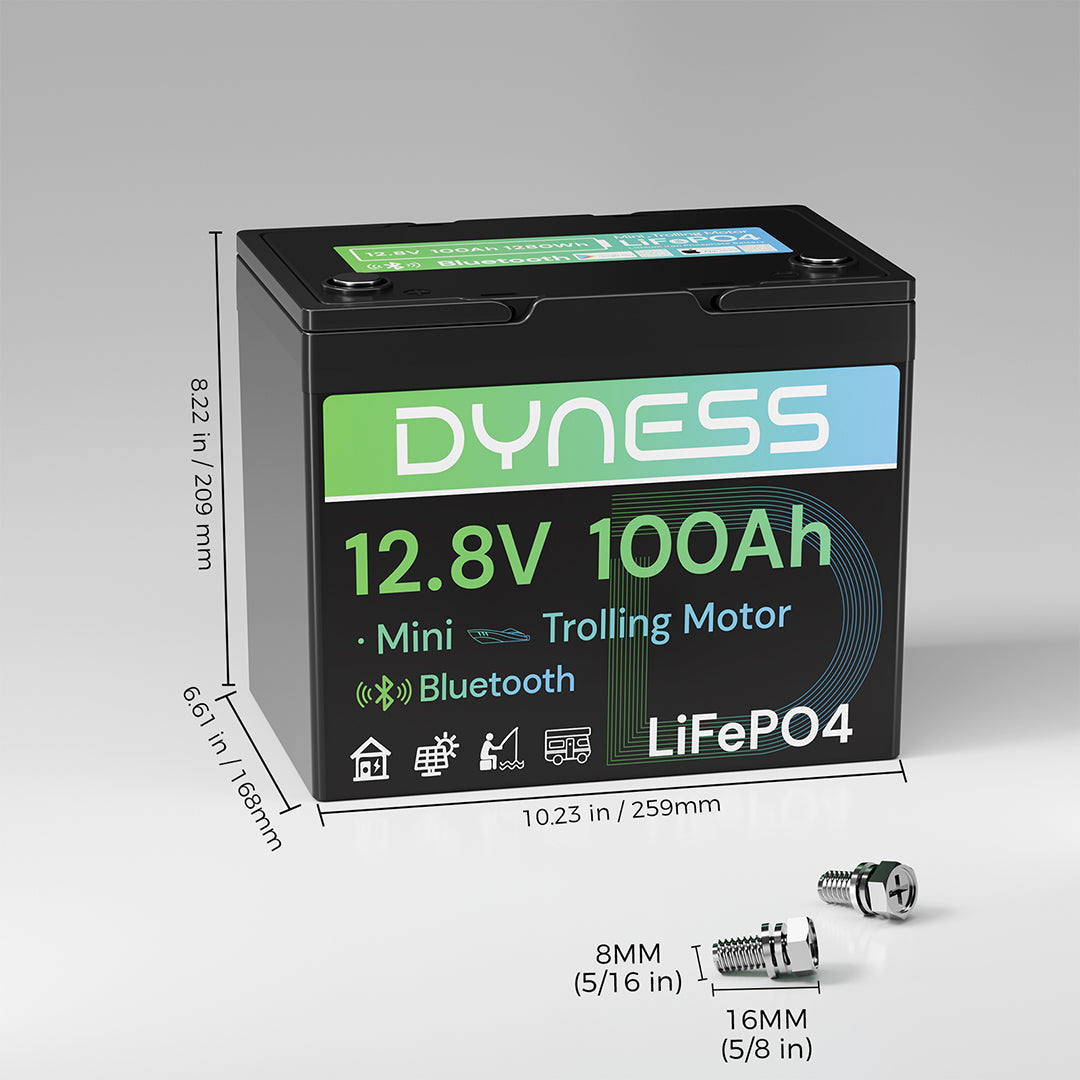

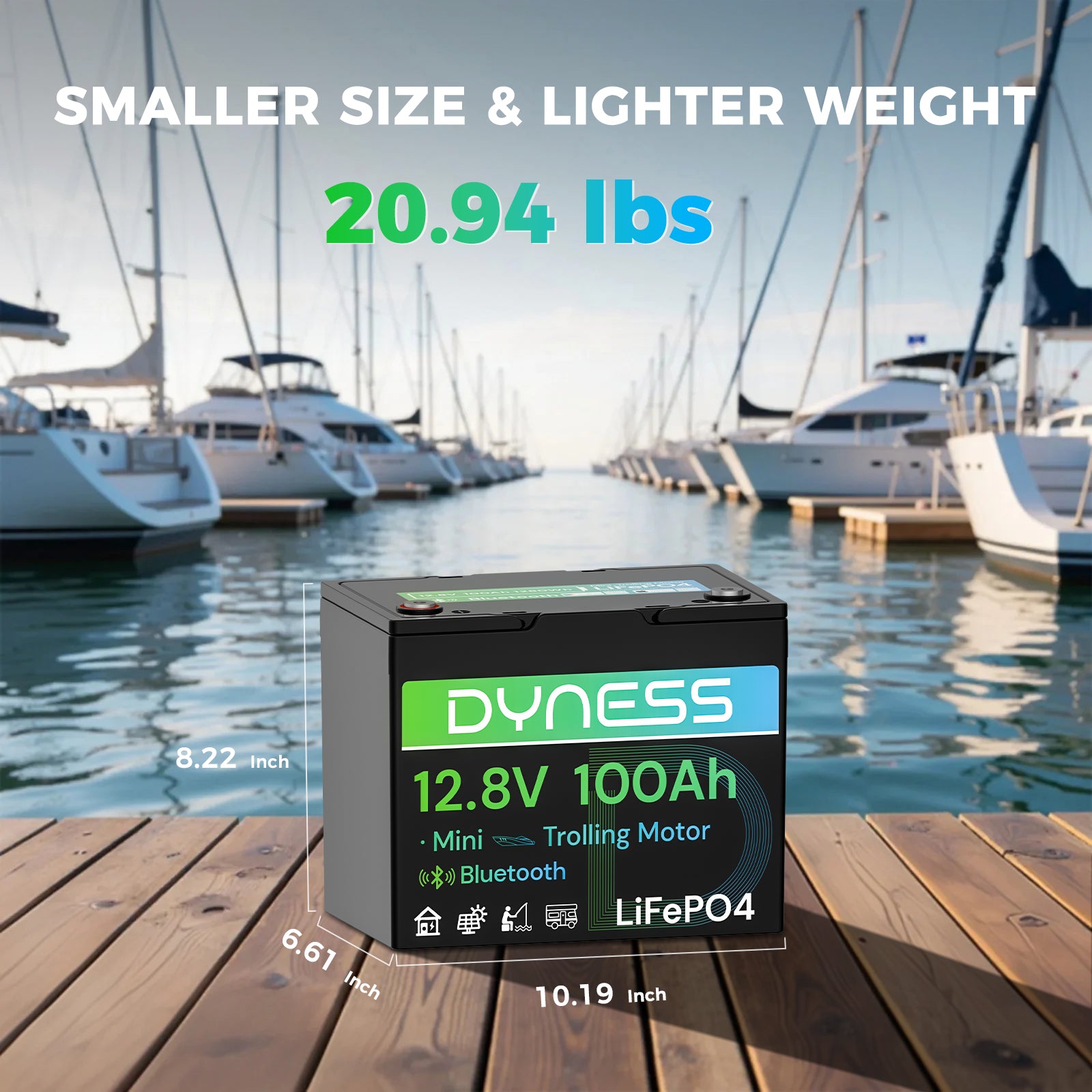

| Size： | 10.24" x 6.61" x 8.23" |
How do I monitor the battery status?
The group 24 battery smart battery built-in Bluetooth feature lets you monitor your battery's real-time status—including state of charge (SOC), voltage, current, cycle life, and temperature—directly from your smartphone. Just download the Dyness Battery App, enable Bluetooth on your phone, and select your battery from the list of available devices. No extra hardware is needed.
What to do when receive the battery?
Please charge the Bluetooth battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established. (Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC charger or MPPT solar charge controller to charge the battery and turn on the battery, it can be used normally.)
Note: When charging the Bluetooth batteries for the first time, the power level may stay at 99% for several hours before reaching 100%.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Does the Dyness Group 24 bluetooth battery has low-temperature protection?

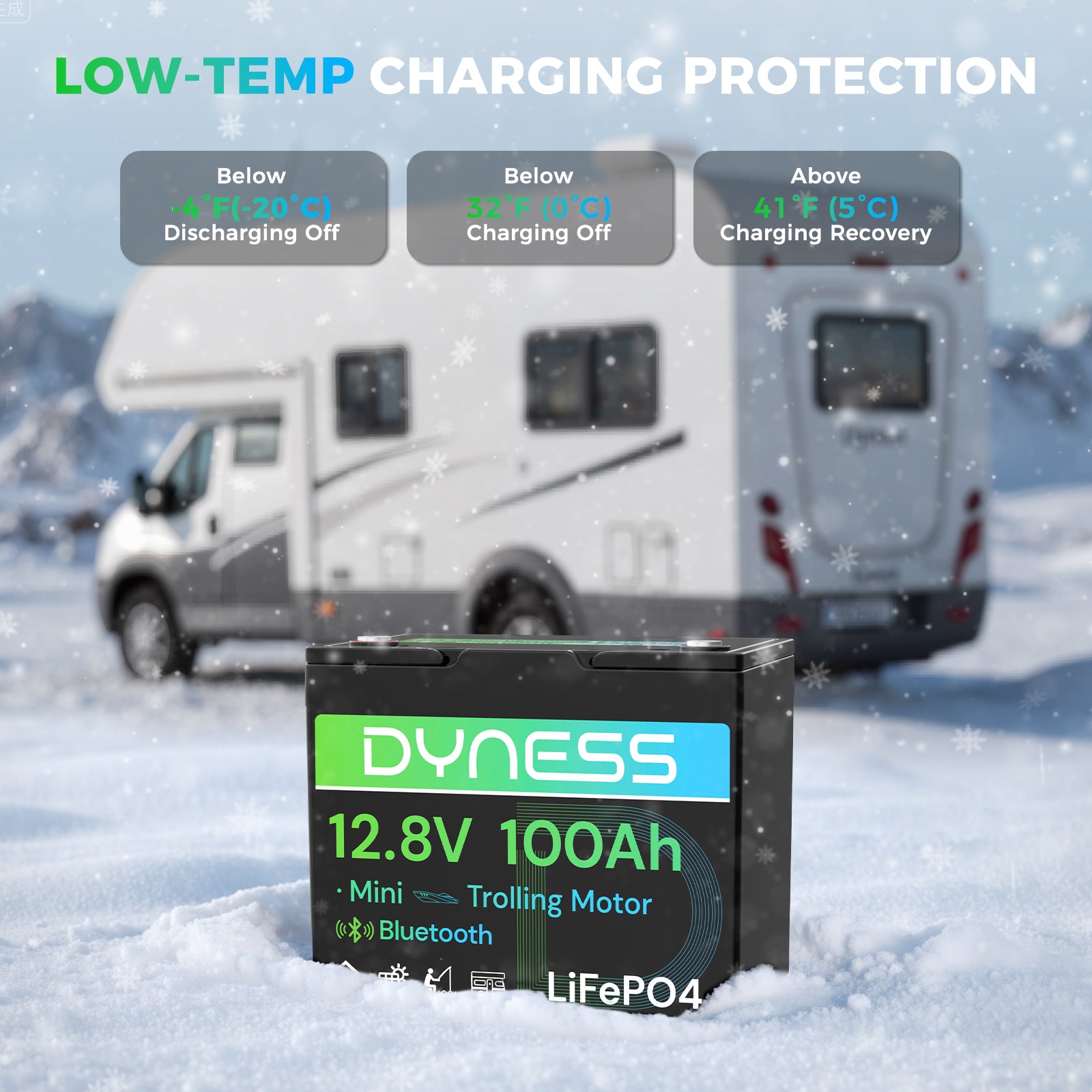

Yes, this group 24 battery has low-temperature charging-off protection. It's recommend to charge the battery during the temperature range: 0℃ to 50℃ / 32℉ to 122℉.
Recommended reading on LiFePO4 Temperature Range Guide for more information on safe usage and performance.
For optimal performance, charge the battery indoors on cold days.

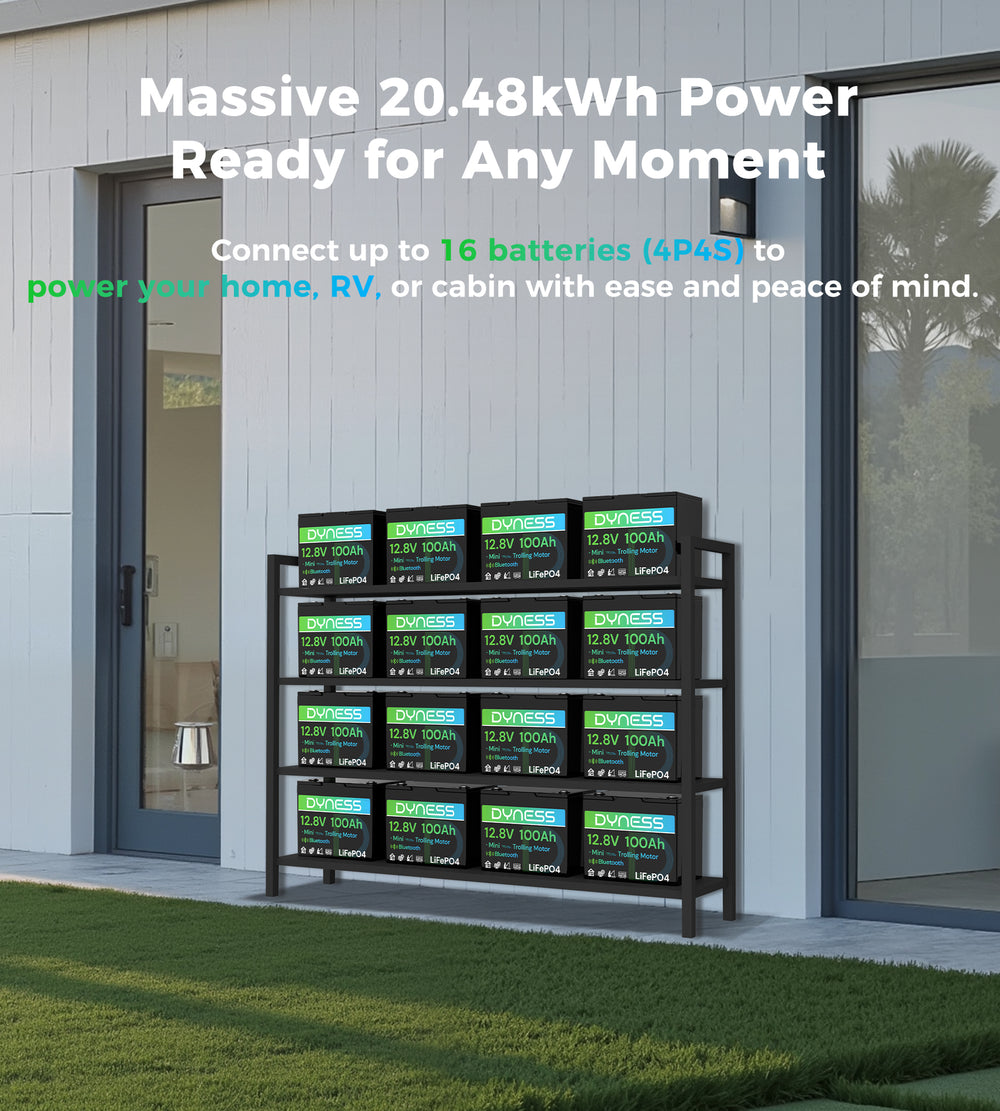

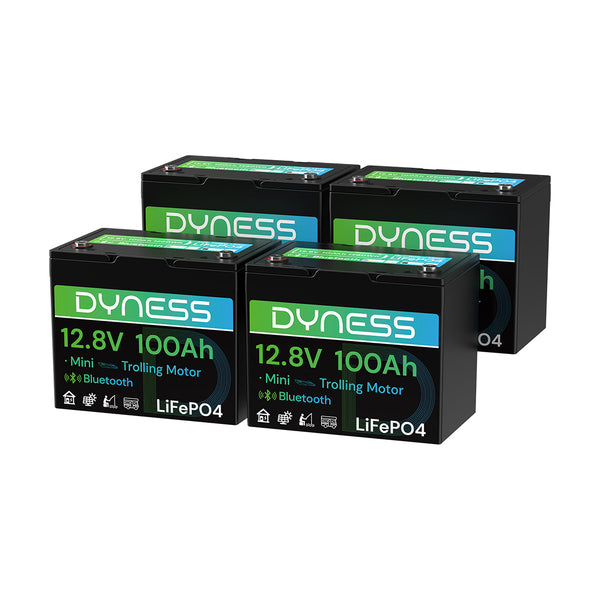

How many group 24 bluetooth batteries can I connect in sereis or parallel?

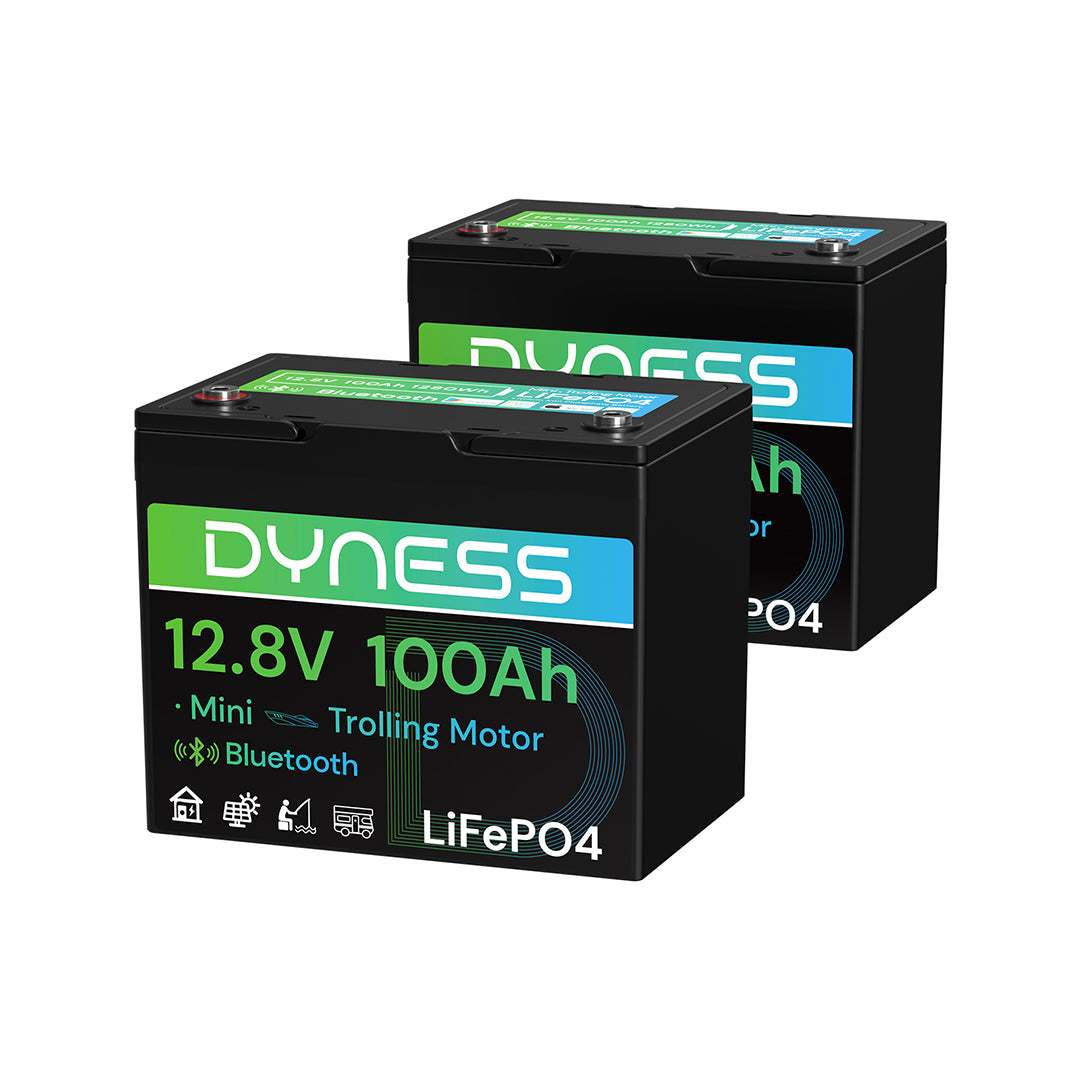

You can easily expand your power system using Dyness Group 24 batteries by connecting them in various configurations.
Series Connection: Connect up to 4 batteries to increase voltage to 51.2VV.
Parallel Connection: Connect up to 4 batteries to increase capacity to 400Ah.

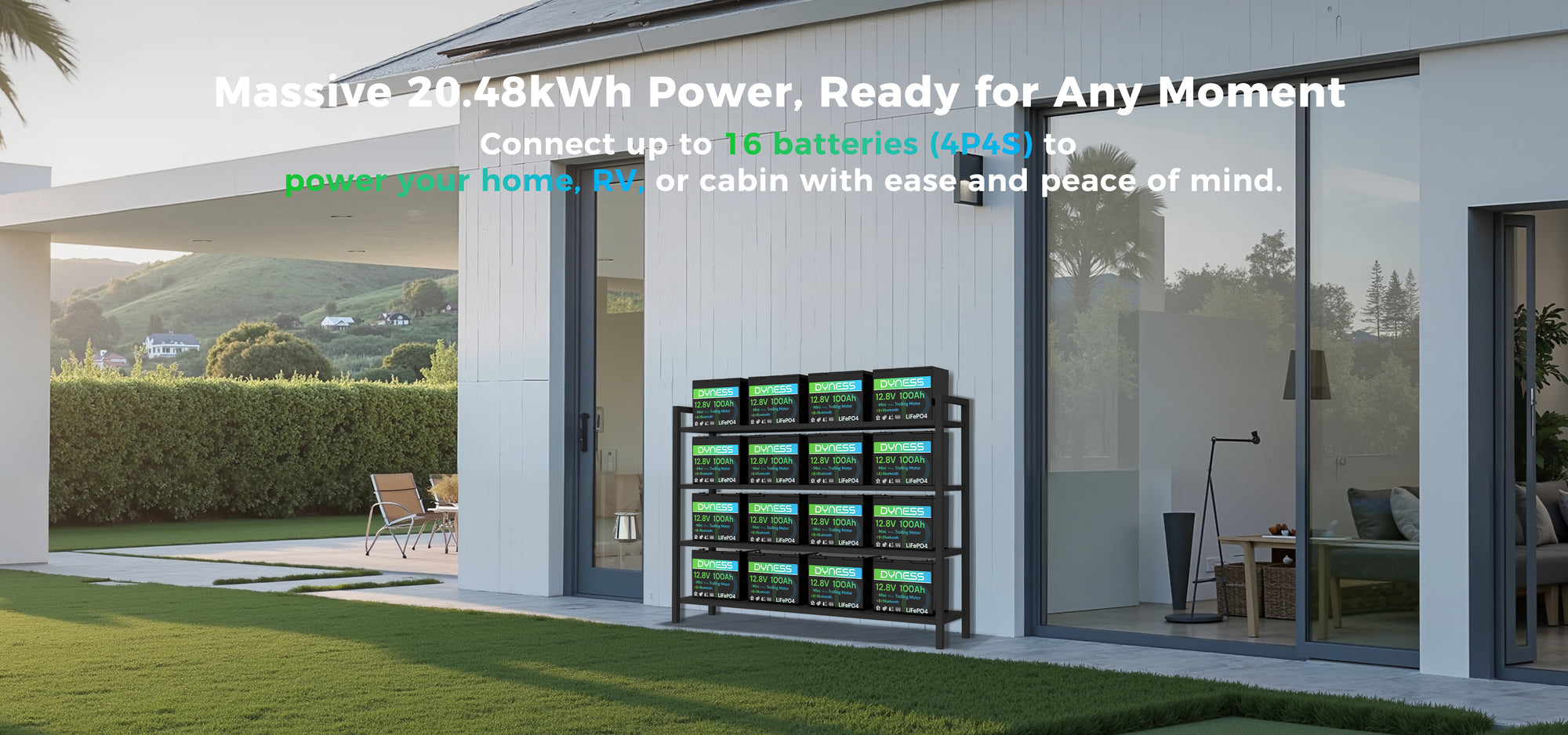

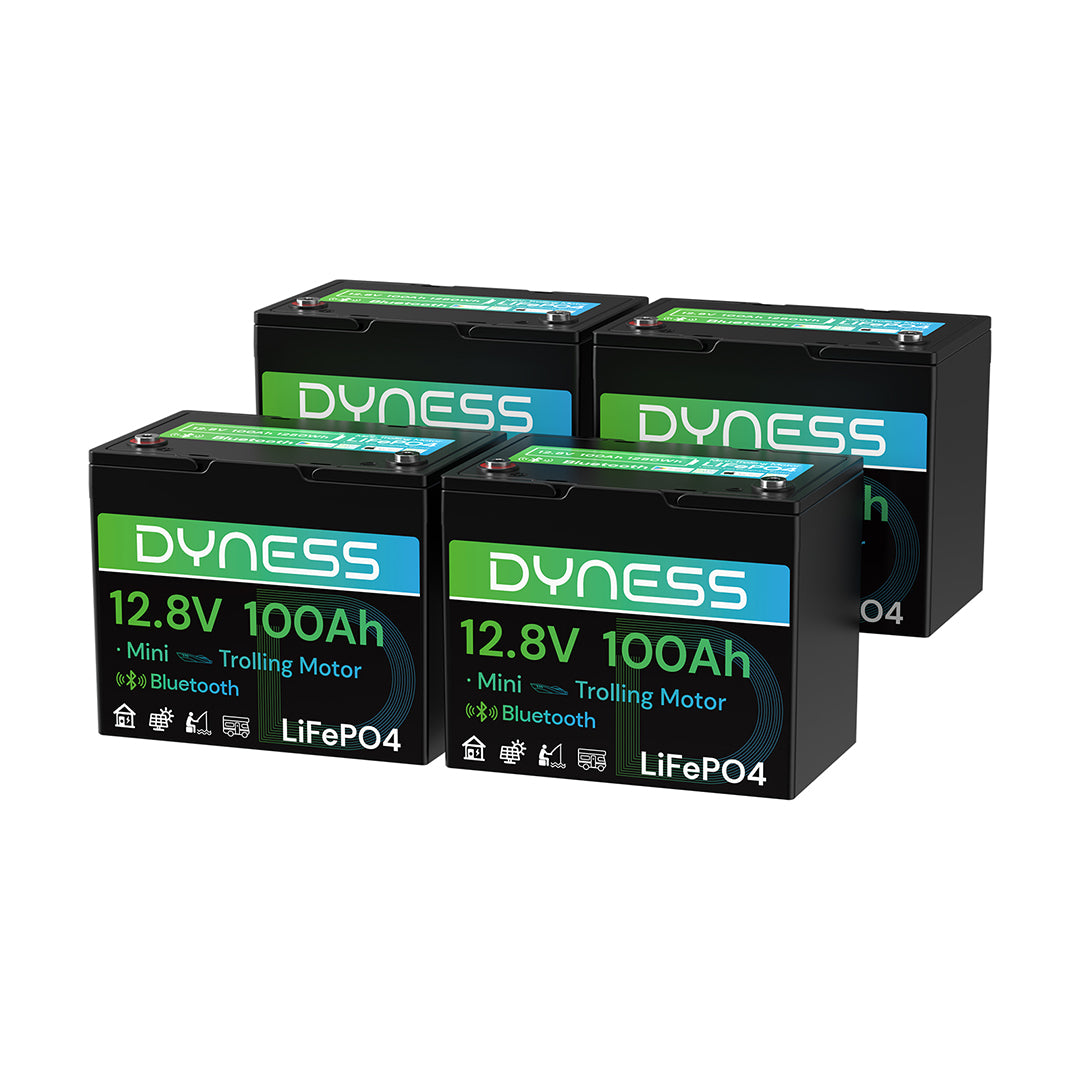

Series-Parallel Connection: Build a larger bank of up to 16 batteries (for example, a 4-series and 4-parallel, or 4S4P, setup).
Important Rules for Connecting Batteries
For your system to operate safely and perform optimally, all connected batteries must meet the following criteria:
Same Specifications: They must have the identical capacity (Ah) and BMS (Battery Management System) current rating (A).
Same Brand: Only connect Dyness batteries with other Dyness batteries. Different brands often have incompatible BMS programming, which can lead to system failure.
Purchased Recently: All batteries should be purchased within a short timeframe (ideally one month) to ensure they are from a similar manufacturing batch and have balanced internal characteristics.
How to charge Dyness Group 24 Bluetooth lithium batteries?
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

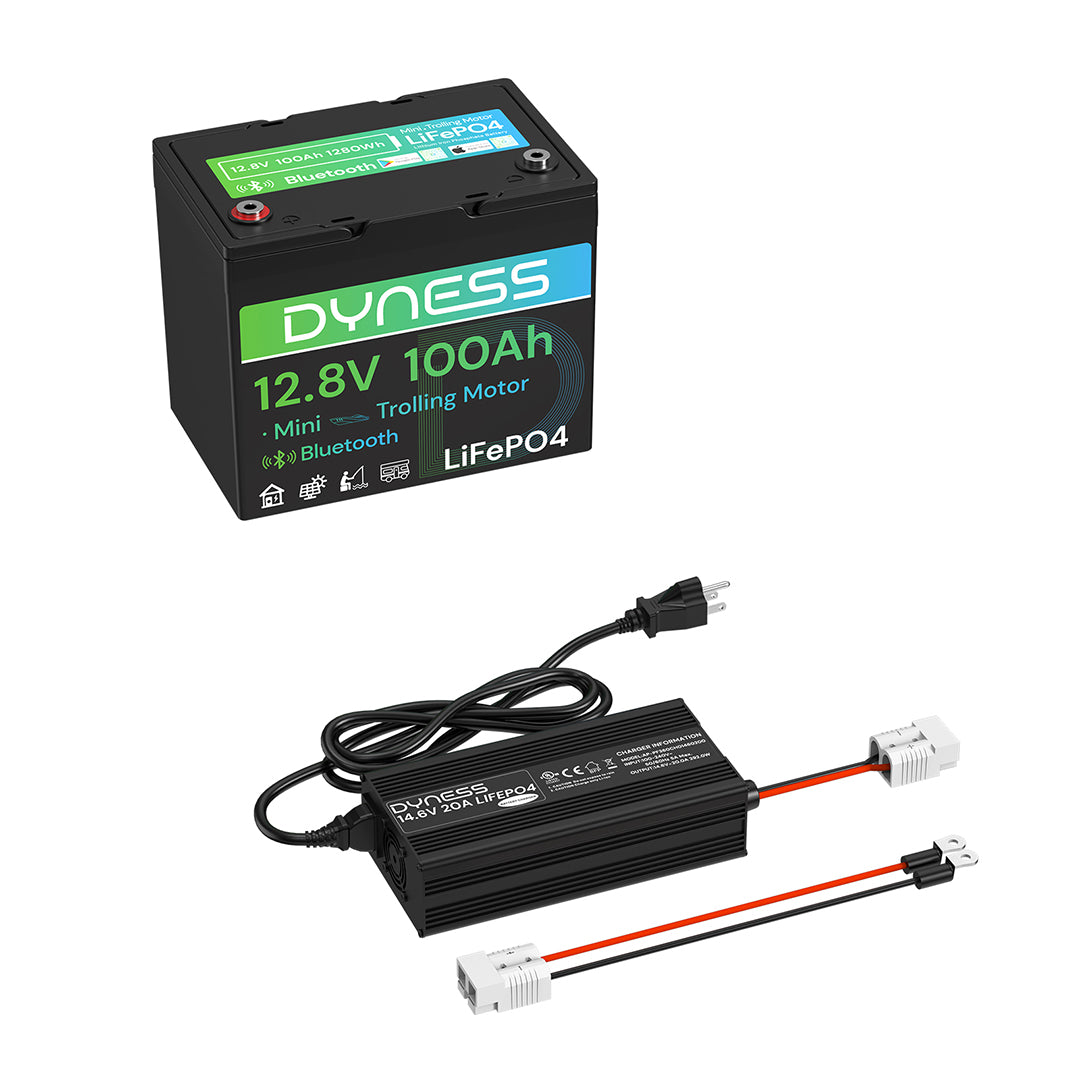

3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current:
① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;
② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
What are the Differences Between a Group 24 and Group 31 Battery?
The main difference between a Dyness Group 24 and Group 31 battery lies in their physical size. Group 24 batteries are generally smaller compared to Group 31 batteries.
Can read on Deep Cycle Group 24 VS Group 31 for more information.
Can the battery be mounted sideways?
Install the battery upright with post bolt facing up, and it could notbe mounted upside down. lf you need to mount the battery at its side. Please contact dynesssupport@dyness-tech.com to confirm the direction.
